Hands-on Exercise 4

Content of This Page

• theory:

  • a summary of Visualising Distribution - Qucik access to Distribution

  • a summary of Visual Statistical Analysis - Qucik access to Statistical Analysis

  • a summary of Visualising Uncertainty - Qucik access to Visualising Uncertainty

  • a summary of Funnel Plots - Qucik access to Funnel Plots

A Short Summary

Plot type	Packages	Function	Description
Distribution - Ridgeline Plot	ggridges	geom_ridgeline()	takes height values directly to draw the ridgelines
Distribution - Ridgeline Plot	ggridges	geom_density_ridges()	first estimates data densities and then draws those using ridgelines
Distribution - Ridgeline Plot	ggridges	geom_density_ridges_gradient() geom_ridgeline_gradient()	gradient color along the x axis do not allow for alpha transparency in the fill.changing fill colors or transparency but not both
Distribution - Ridgeline Plot	ggridges	stat_density_ridges()	Mapping the probabilities directly onto colour replaces stat_density() of ggplot2
Distribution - Ridgeline Plot	ggridges	geom_density_ridges_gradient()	colour the ridgeline plot by quantile
Distribution - Raincloud Plot	ggdist	stat_halfeye() geom_boxplot() stat_dots()	Half Eye visualization + Boxplot + Dot Plots
Statistical	ggstatsplot	gghistostats(x)	One-sample test, 1 continuous
Statistical - Significant Test	ggstatsplot	ggbetweenstats(x, y)	Two-sample mean test, 1 continuous, 1 categorical variable
Statistical - Significant Test	ggstatsplot	ggbetweenstats(x, y)	Oneway ANOVA Test, 1 continuous, 1 categorical variable
Statistical - Significant Test	ggstatsplot	ggscatterstats(x, y)	Significant Test of Correlation, 2 continuous variables
Statistical - Significant Test	ggstatsplot	ggbarstats(x, y)	Significant Test of Association (Depedence), 2 categorical variables
Statistical - Regression	Base Stats of R	lm(y ~ x)	Multiple Regression Model using lm()
Statistical - Model Diagnostic	performance	check_collinearity(model)	Model Diagnostic: checking for multicolinearity
Statistical - Model Diagnostic	performance	check_normality(model)	Model Diagnostic: checking normality assumption
Statistical - Model Diagnostic	performance	check_heteroscedasticity(model)	Model Diagnostic: Check model for homogeneity of variances
Statistical - Model Diagnostic	performance	check_model(model)	Model Diagnostic: Complete check

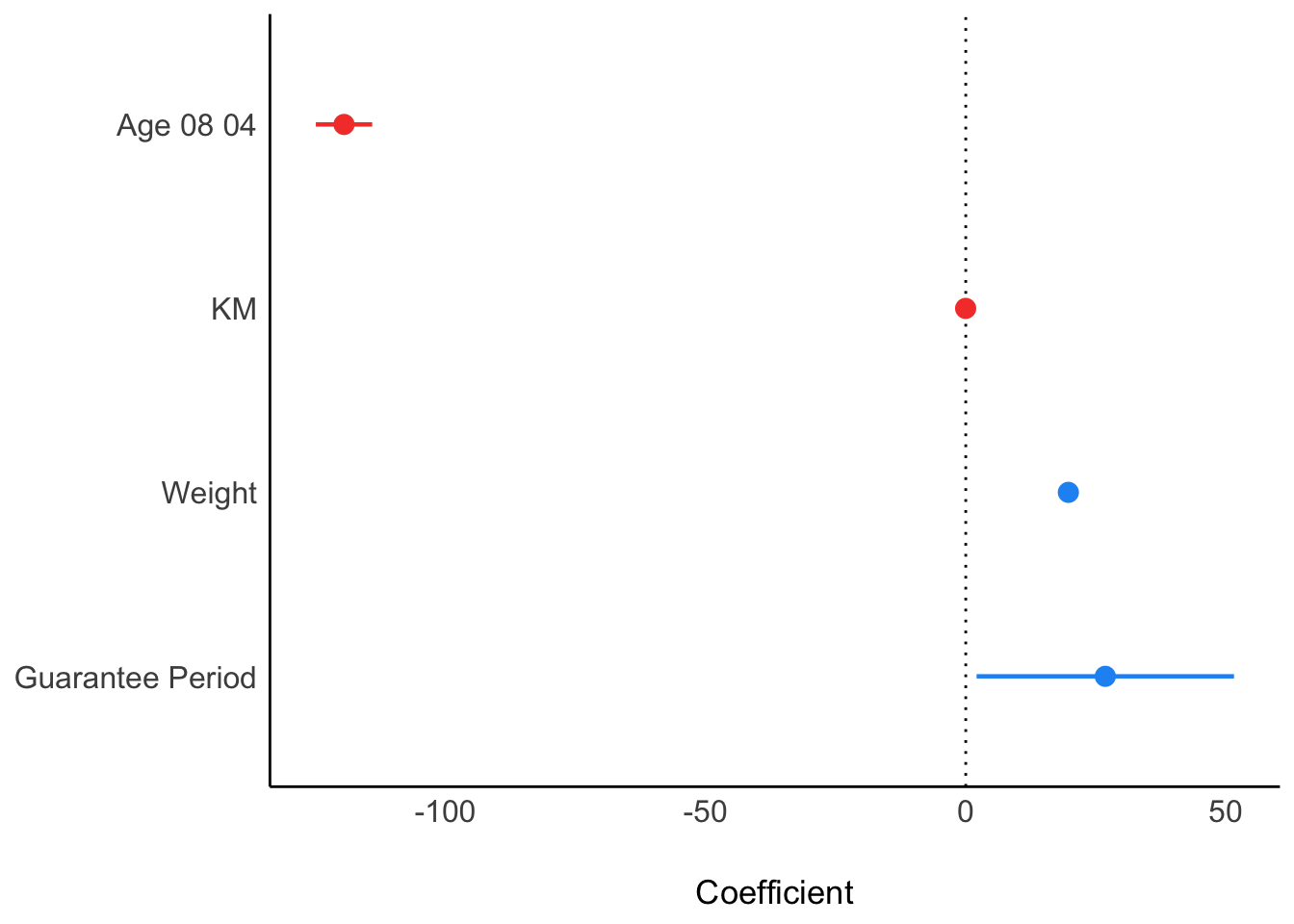

Statistical - Model Parameters	see	plot()	visualise the parameters of a regression model
Statistical - Model Parameters	ggstatsplot	ggcoefstats()	visualise the parameters of a regression model

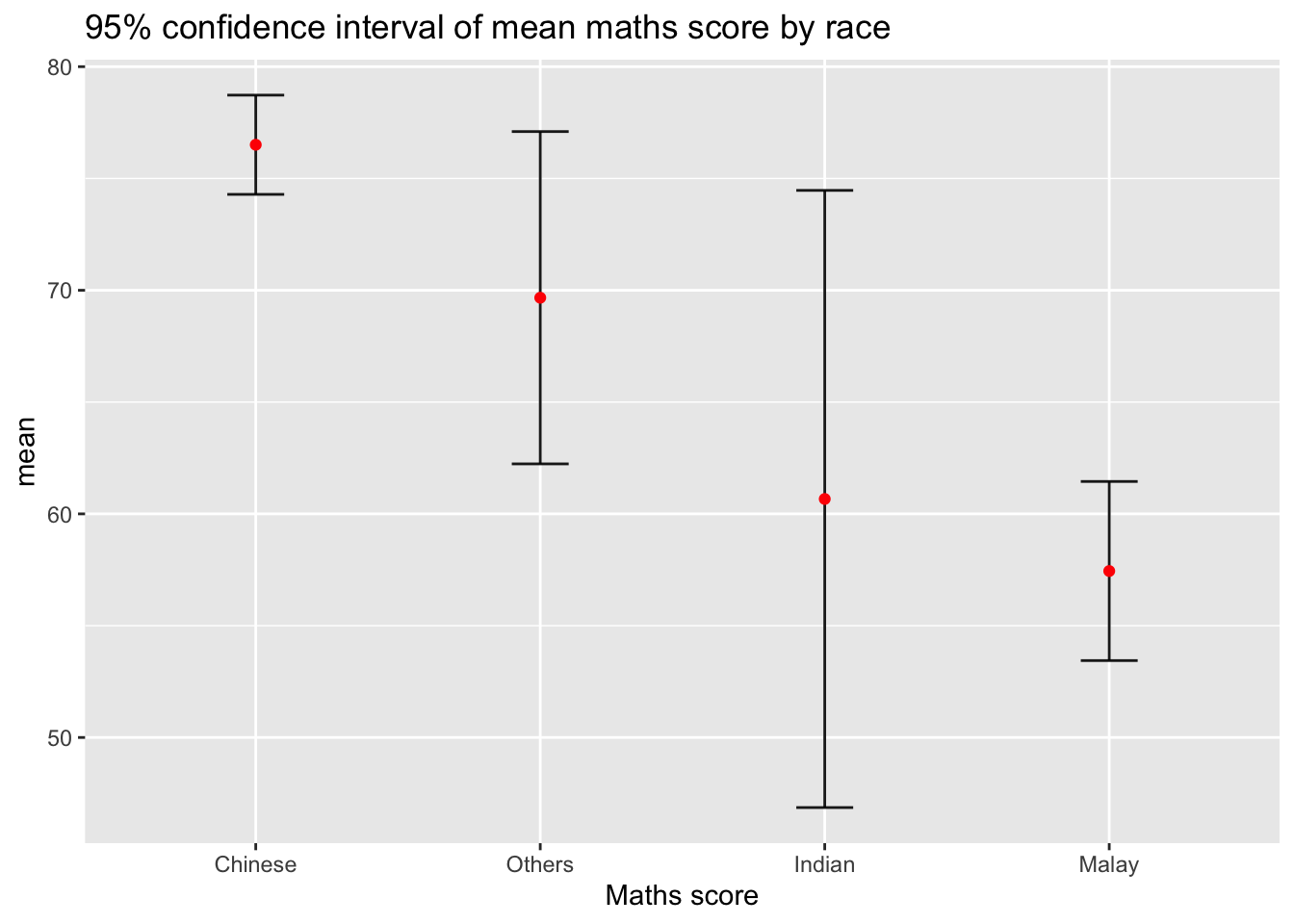

Uncertainty	ggplot2	geom_errorbar()	plot the standard error bars

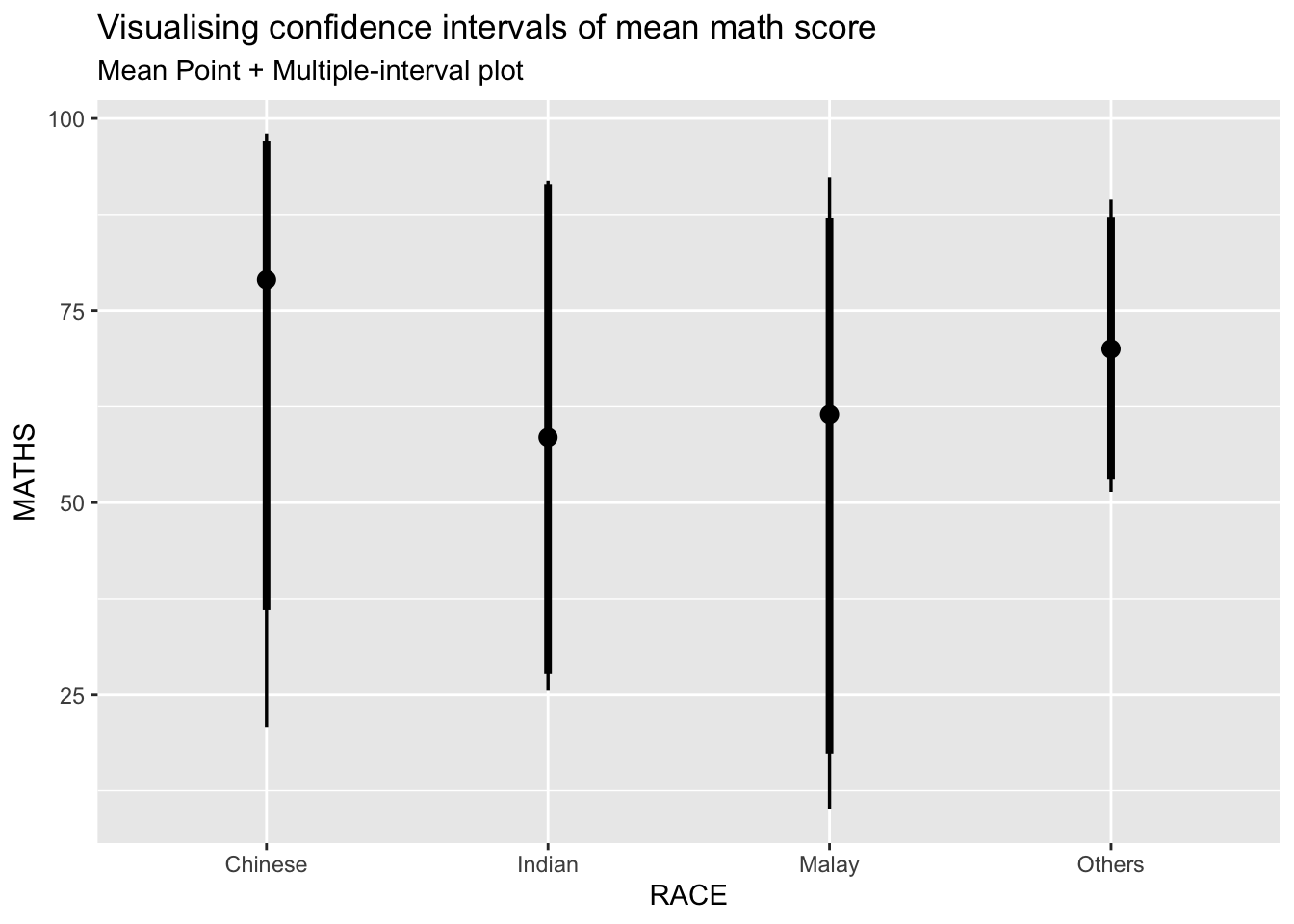

Uncertainty	ggdist	stat_pointinterval()	plot the standard error bars .width: CI .point = median .interval = qi

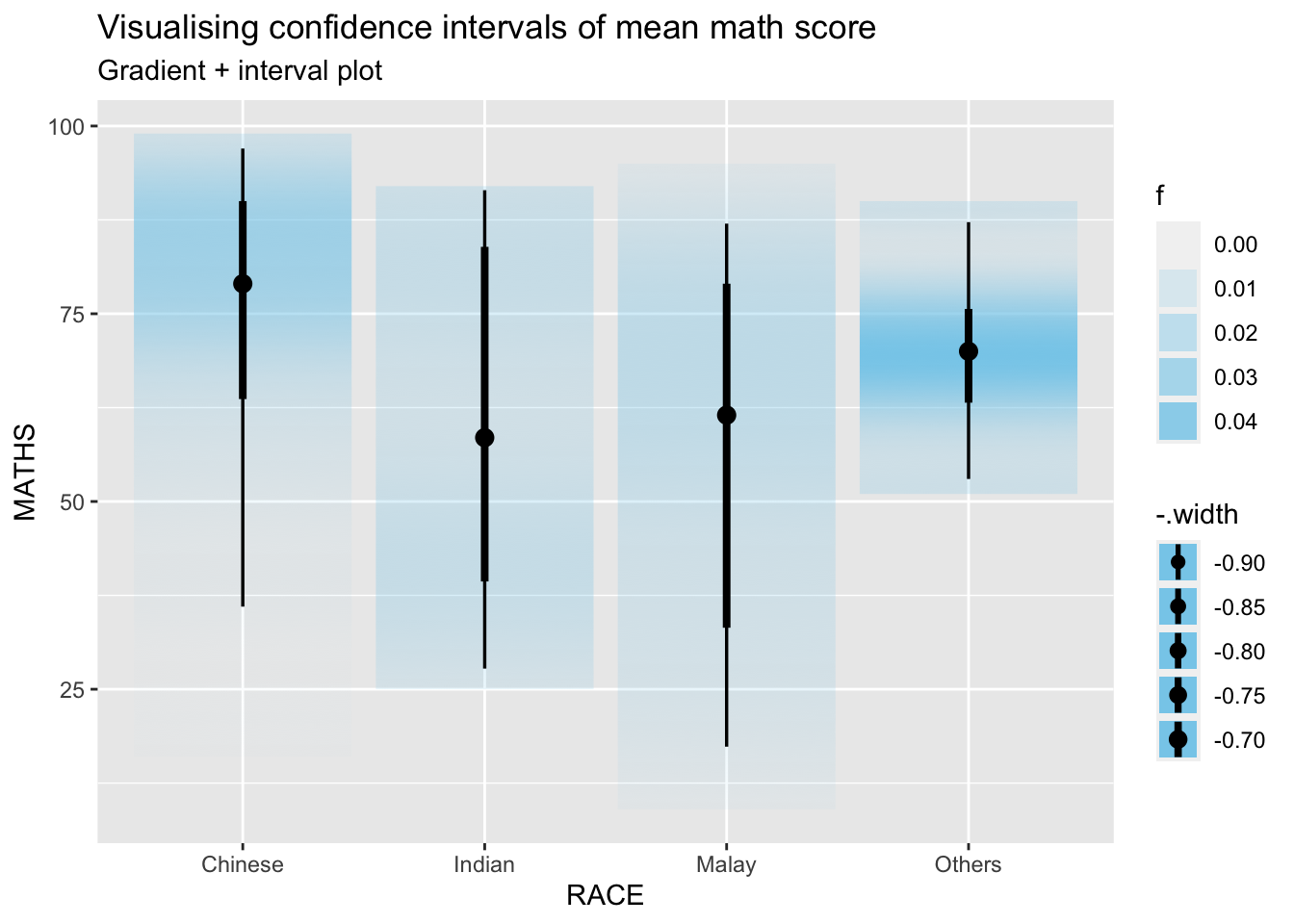

Uncertainty	ggdist	stat_gradientinterval()	plot the standard error bars with gradient distribution
Uncertainty	ungeviz	library(ungeviz) transition_states(.draw, 1, 3)	Visualising Uncertainty with interative Hypothetical Outcome Plots (HOPs)

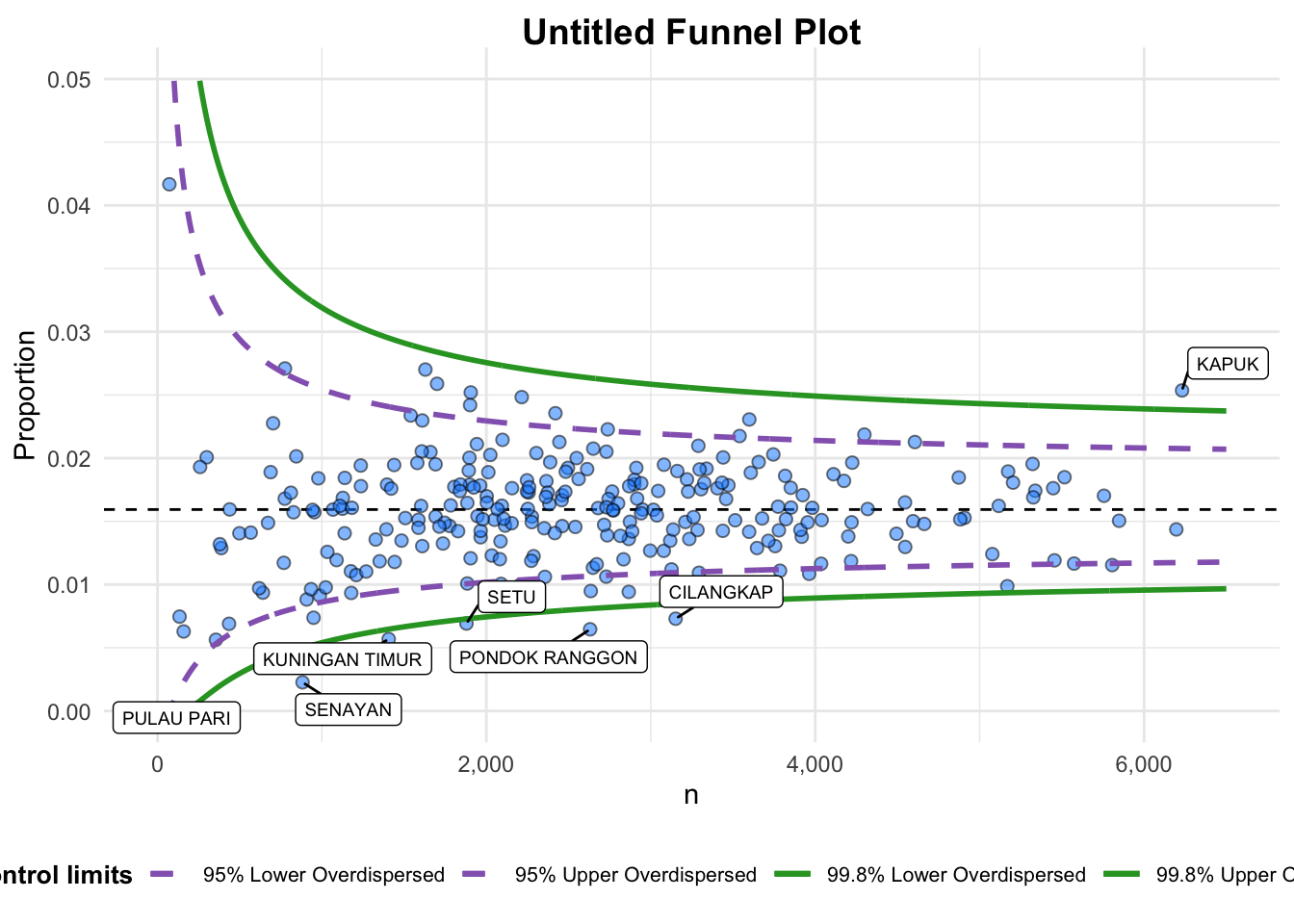

Funnel Plots	FunnelPlotR	funnel_plot(numerator, denominator, group)	Funnel plot is a specially designed data visualisation for conducting unbiased comparison between outlets, stores or business entities
Funnel Plots	ggplot2	mutate() .mean() geom_line() geom_point() geom_hline()	basic derived fields lower and upper limits for 95% and 99.9% CI Plotting a static funnel plot

Distribution

Popular statistical graphics methods for visualising distribution: histogram, probability density curve (pdf), boxplot, notch plot and violin plot.

In this chapter, 2 relatively new statistical graphic methods for visualising distribution will be covered: ridgeline plot and raincloud plot.

Installing and loading the required libraries

For the purpose of this exercise, the following R packages will be used, they are:

• tidyverse, a family of R packages for data science process,

• ggridges, a ggplot2 extension specially designed for plotting ridgeline plots, and

• ggdist for visualising distribution and uncertainty.

Code

pacman::p_load(ggdist, ggridges, ggthemes,
               colorspace, tidyverse)

Importing data

The code chunk below is to import the data

Code

exam <- read_csv("data/Exam_data.csv")

Ridgeline Plot

Ridgeline plot (sometimes called Joyplot) is a data visualisation technique for revealing the distribution of a numeric value for several groups. Distribution can be represented using histograms or density plots, all aligned to the same horizontal scale and presented with a slight overlap.

When to use Ridgeline plot?

• Ridgeline plots make sense when the number of group to represent is medium to high, and thus a classic window separation would take to much space. Indeed, the fact that groups overlap each other allows to use space more efficiently. If you have less than 5 groups, dealing with other distribution plots is probably better.

• It works well when there is a clear pattern in the result, like if there is an obvious ranking in groups. Otherwise group will tend to overlap each other, leading to a messy plot not providing any insight.

There are several ways to plot ridgeline plot with R. In this section, ggridges package will be used.

ggridges package provides two main geom to plot gridgeline plots:

• geom_ridgeline() : takes height values directly to draw the ridgelines,

• geom_density_ridges(): first estimates data densities and then draws those using ridgelines

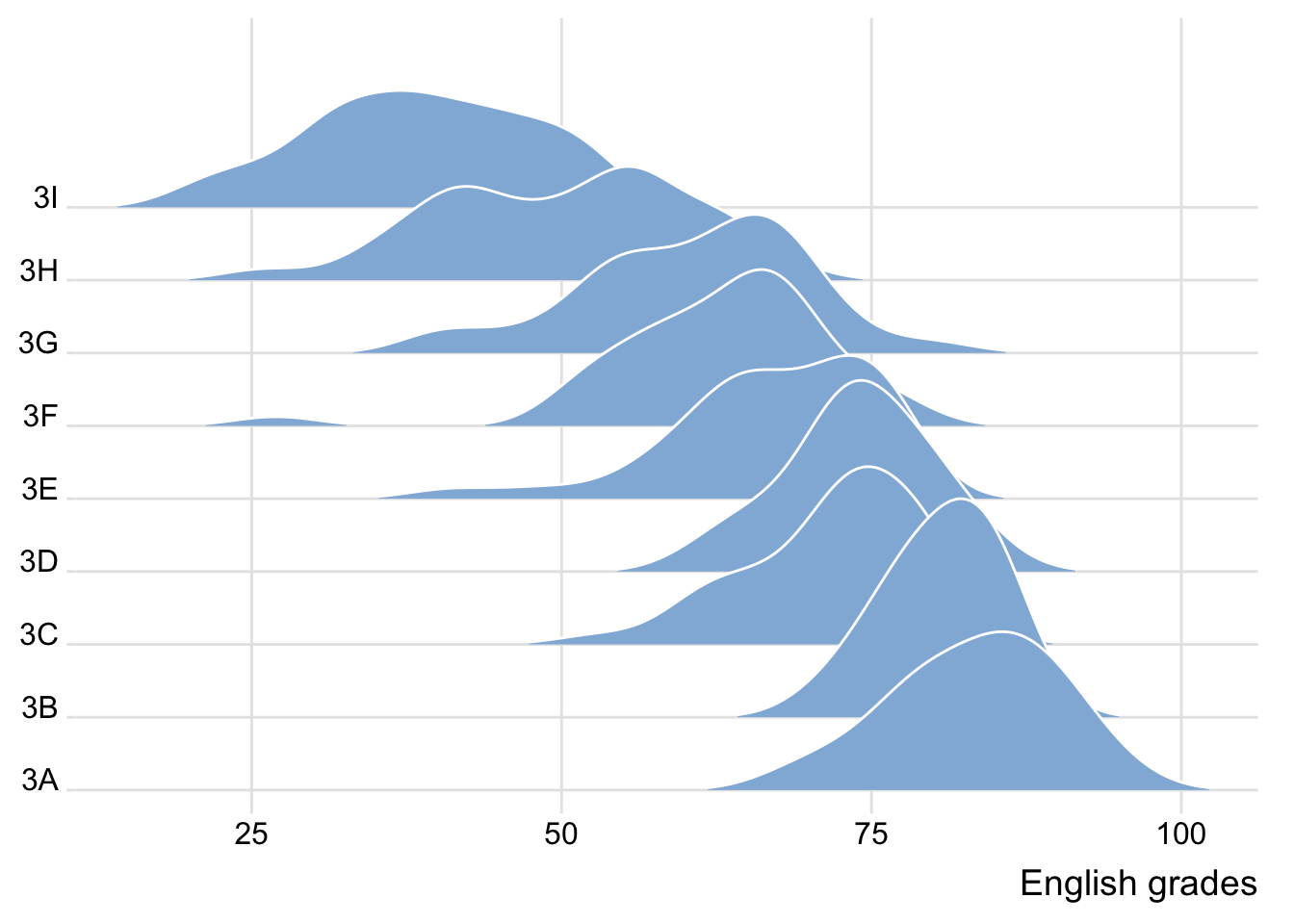

Basic

The ridgeline plot below is plotted by using geom_density_ridges().

Code

ggplot(exam,
       aes(x = ENGLISH,
           y = CLASS)) +
  geom_density_ridges(
    scale = 3,
    rel_min_height = 0.01,
    bandwidth = 3.4,
    fill = lighten("#7097BB", .3),
    color = "white"
  ) +
  scale_x_continuous(
    name = "English grades",
    expand = c(0, 0)
    ) +
  scale_y_discrete(name = NULL, expand = expansion(add = c(0.2, 2.6))) +
  theme_ridges()

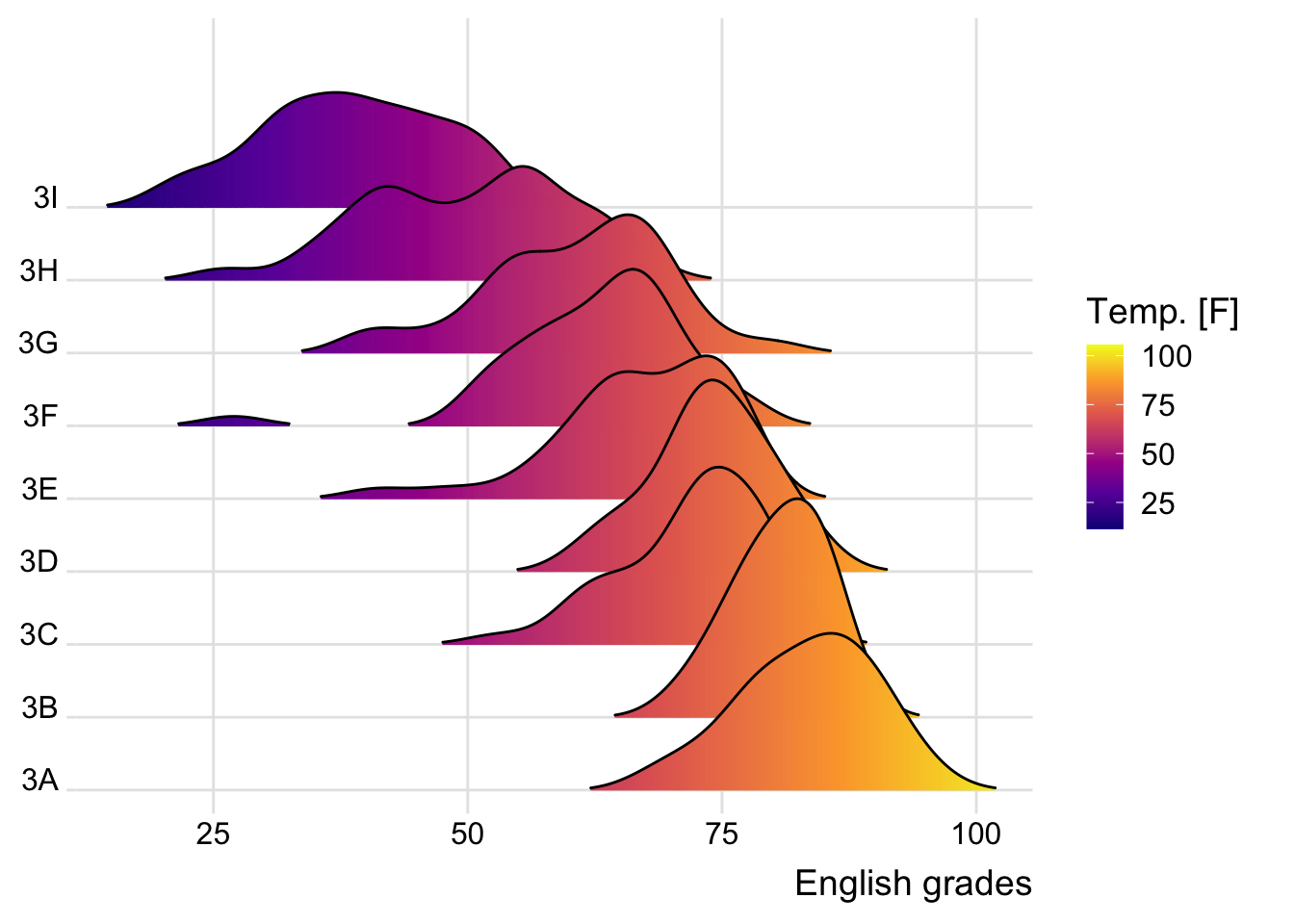

Gradient

Sometimes we would like to have the area under a ridgeline to fill with olors that vary in some form along the x axis. This effect can be achieved by using either geom_ridgeline_gradient() or geom_density_ridges_gradient(). Both geoms work just like geom_ridgeline() and geom_density_ridges(), except that they allow for varying fill colors. However, they do not allow for alpha transparency in the fill. For technical reasons, we can have changing fill colors or transparency but not both.

Code

ggplot(exam,
       aes(x = ENGLISH,
           y = CLASS,
           fill = stat(x))) +
  geom_density_ridges_gradient(
    scale = 3,
    rel_min_height = 0.01) +
  scale_fill_viridis_c(name = "Temp. [F]",
                       option = "C") +
  scale_x_continuous(
    name = "English grades",
    expand = c(0, 0)
  ) +
  scale_y_discrete(name = NULL, expand = expansion(add = c(0.2, 2.6))) +
  theme_ridges()

Probabilities

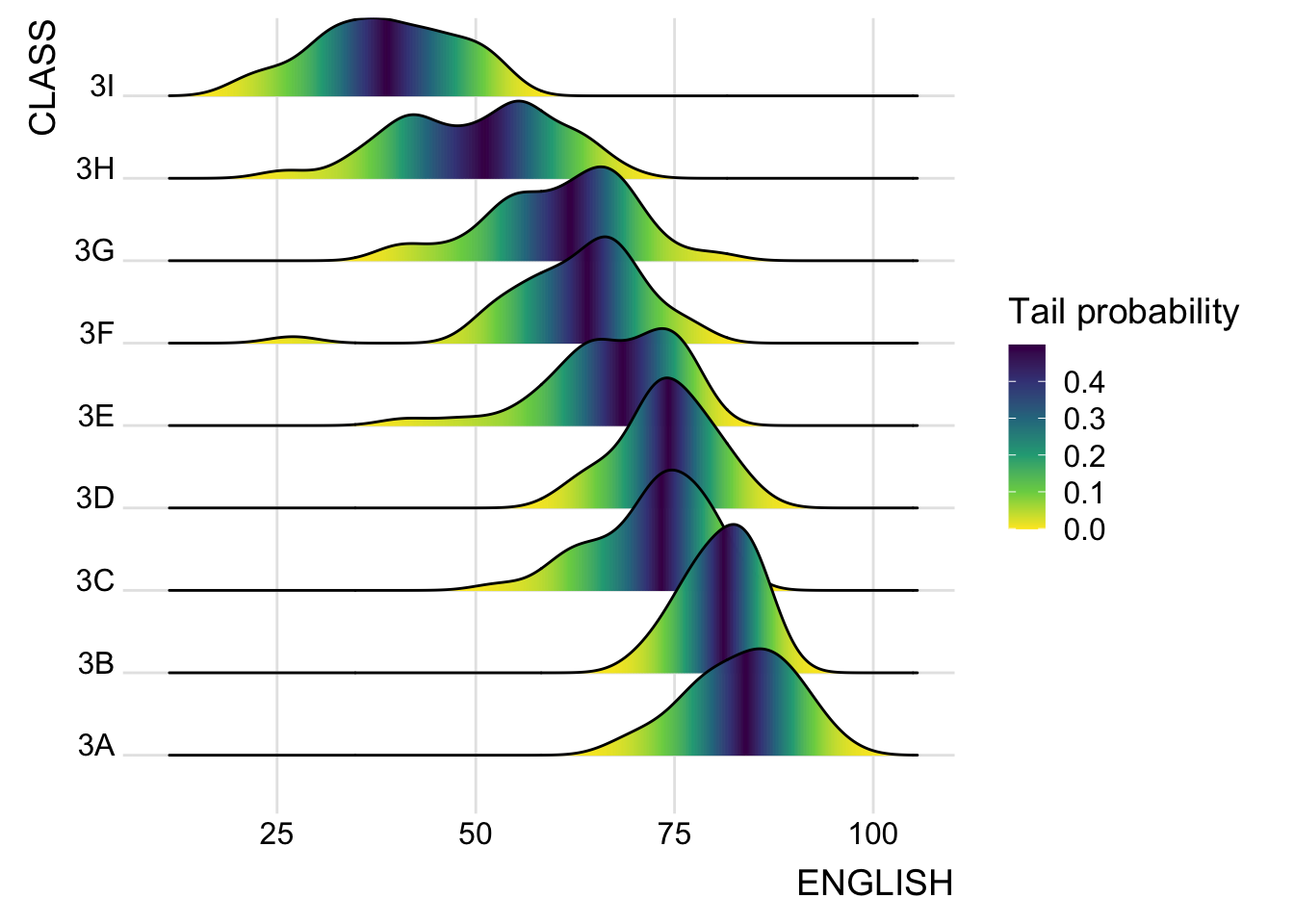

ggridges package also provides a stat function called stat_density_ridges() that replaces stat_density() of ggplot2.

It allows mapping of probabilities calculated by using stat(ecdf) which represent the empirical cumulative density function for the distribution of English score.

It is important include the argument calc_ecdf = TRUE in stat_density_ridges().

Code

ggplot(exam,
       aes(x = ENGLISH,
           y = CLASS,
           fill = 0.5 - abs(0.5-stat(ecdf)))) +
  stat_density_ridges(geom = "density_ridges_gradient",
                      calc_ecdf = TRUE) +
  scale_fill_viridis_c(name = "Tail probability",
                       direction = -1) +
  theme_ridges()

Quantile

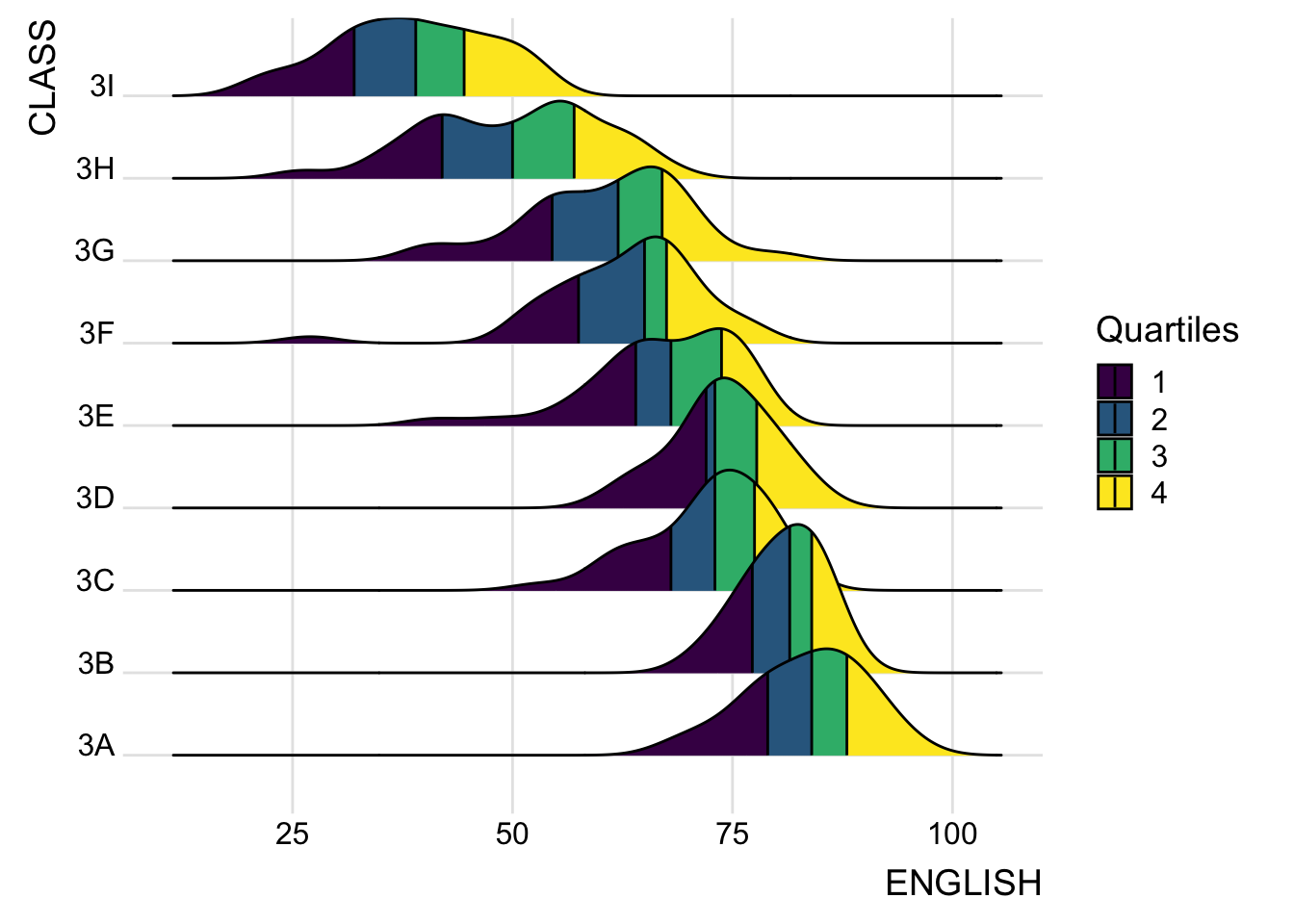

By using geom_density_ridges_gradient(), we can colour the ridgeline plot by quantile, via the calculated stat(quantile) aesthetic as shown in the figure below.

Code

ggplot(exam,
       aes(x = ENGLISH,
           y = CLASS,
           fill = factor(stat(quantile))
           )) +
  stat_density_ridges(
    geom = "density_ridges_gradient",
    calc_ecdf = TRUE,
    quantiles = 4,
    quantile_lines = TRUE) +
  scale_fill_viridis_d(name = "Quartiles") +
  theme_ridges()

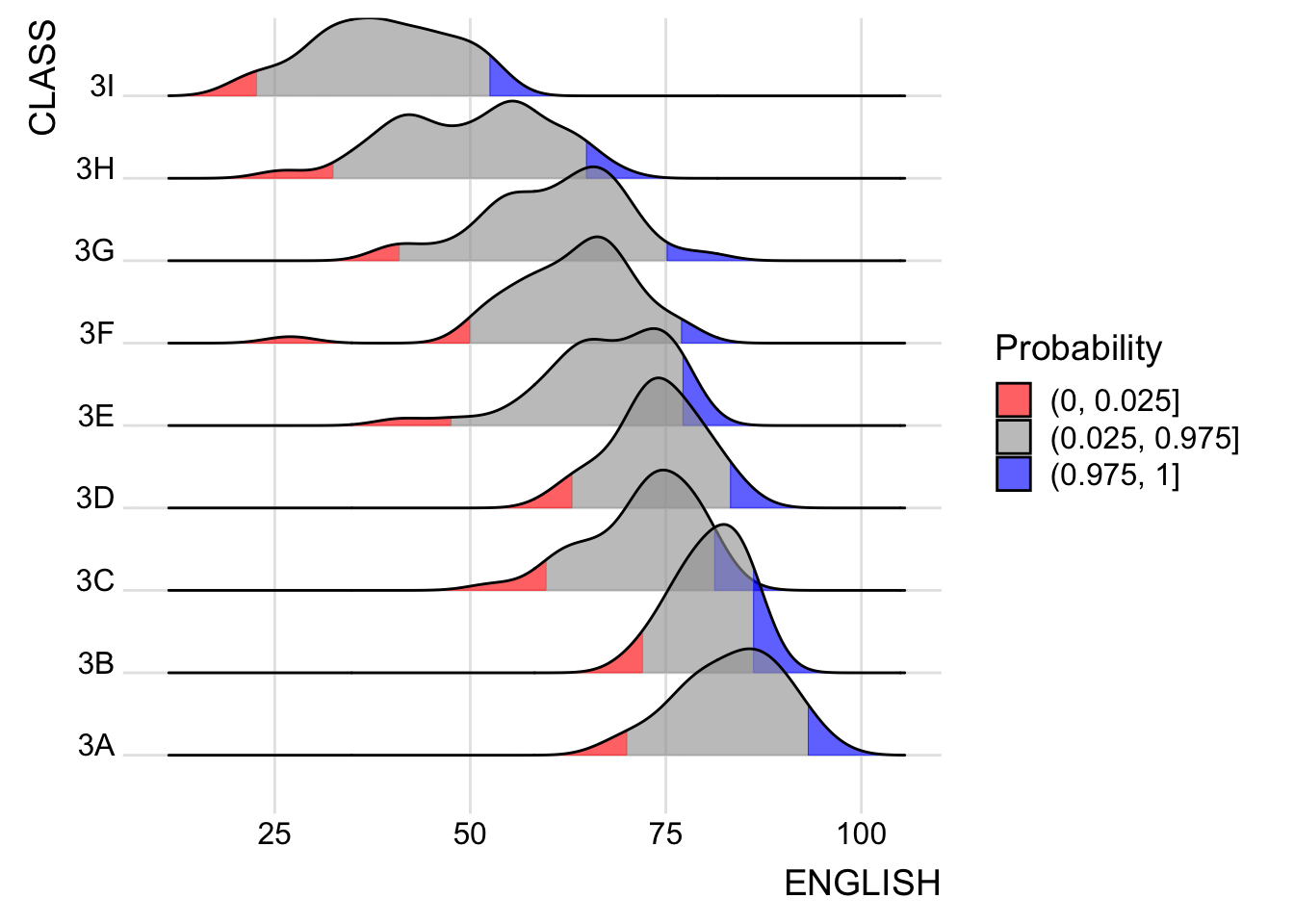

95% CI

Instead of using number to define the quantiles, we can also specify quantiles by cut points such as 2.5% and 97.5% tails to colour the ridgeline plot as shown in the figure below.

Code

ggplot(exam,
       aes(x = ENGLISH,
           y = CLASS,
           fill = factor(stat(quantile))
           )) +
  stat_density_ridges(
    geom = "density_ridges_gradient",
    calc_ecdf = TRUE,
    quantiles = c(0.025, 0.975)
    ) +
  scale_fill_manual(
    name = "Probability",
    values = c("#FF0000A0", "#A0A0A0A0", "#0000FFA0"),
    labels = c("(0, 0.025]", "(0.025, 0.975]", "(0.975, 1]")
  ) +
  theme_ridges()

Raincloud Plot

Raincloud Plot is a data visualisation techniques that produces a half-density to a distribution plot. It gets the name because the density plot is in the shape of a “raincloud”. The raincloud (half-density) plot enhances the traditional box-plot by highlighting multiple modalities (an indicator that groups may exist). The boxplot does not show where densities are clustered, but the raincloud plot does!

In this section, a raincloud plot to visualise the distribution of English score by race will be created by using functions provided by ggdist and ggplot2 packages step by step.

alf Eye Graph

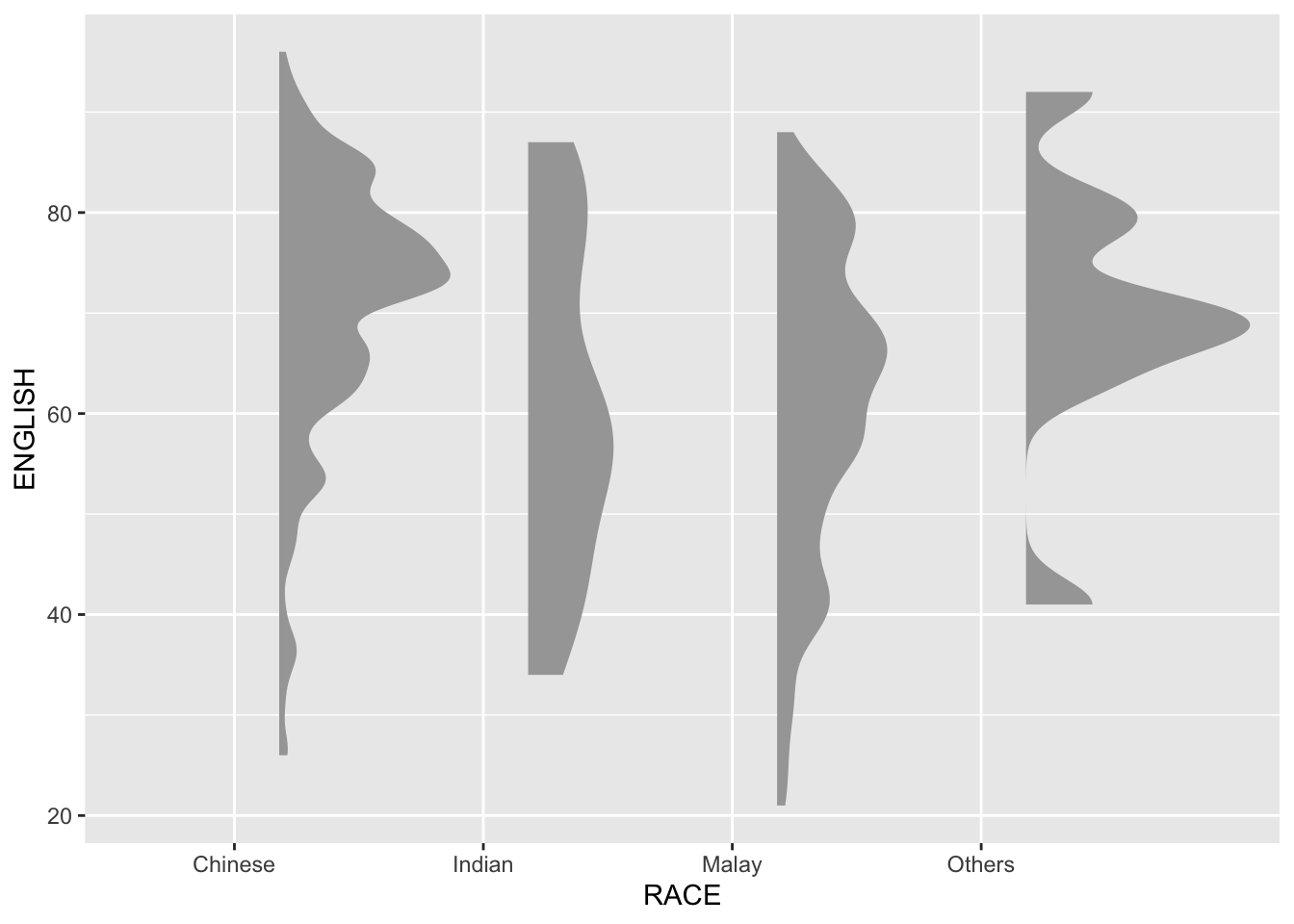

First, we will plot a Half-Eye graph by using stat_halfeye() of ggdist package.

This produces a Half Eye visualization, which is contains a half-density and a slab-interval.

We remove the slab interval by setting .width = 0 and point_colour = NA.

Code

ggplot(exam,
       aes(x = RACE,
           y = ENGLISH)) +
  stat_halfeye(adjust = 0.5,
               justification = -0.2,
               .width = 0,
               point_colour = NA)

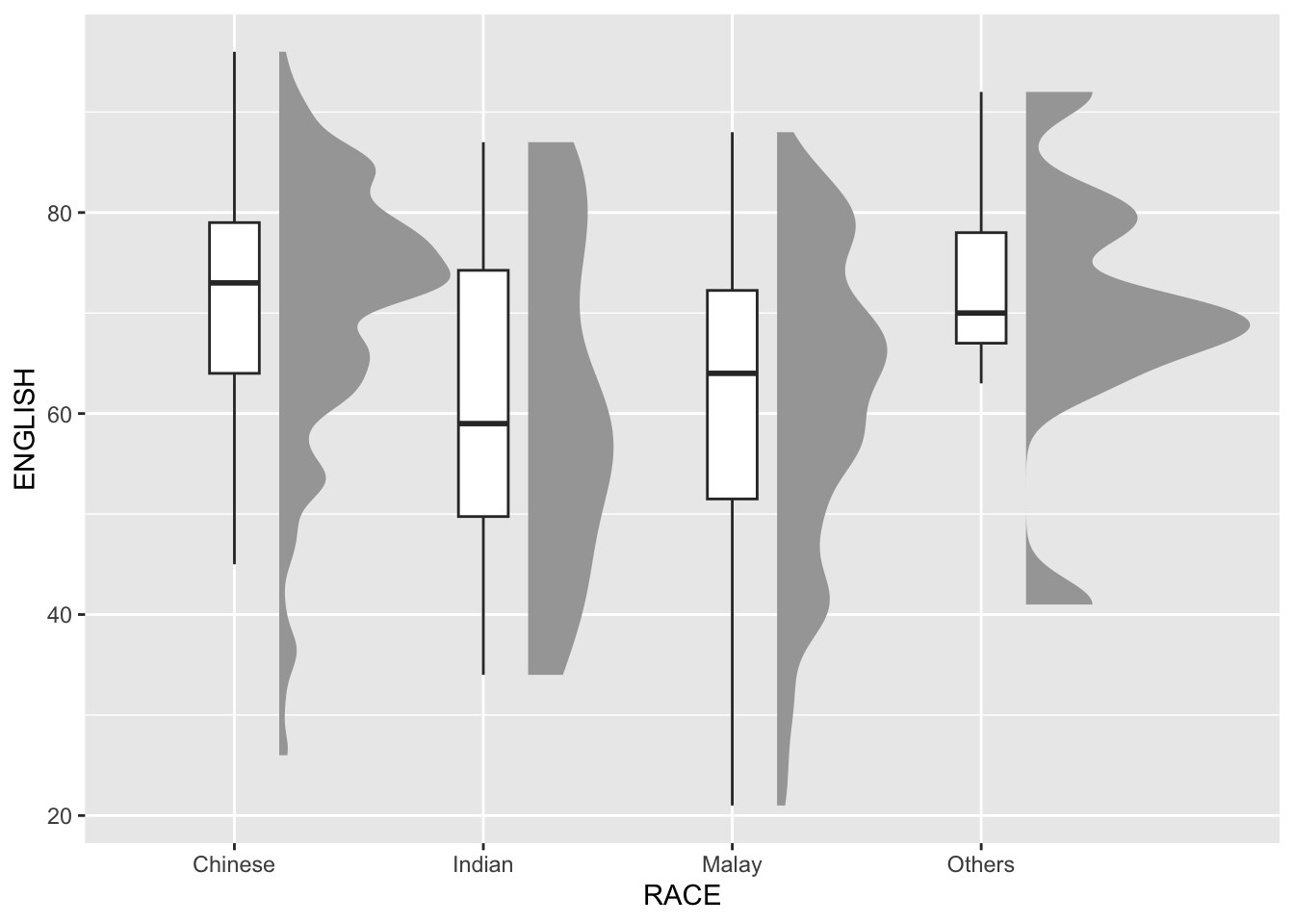

Boxplot

Next, we will add the second geometry layer using geom_boxplot() of ggplot2. This produces a narrow boxplot. We reduce the width and adjust the opacity.

Code

ggplot(exam,
       aes(x = RACE,
           y = ENGLISH)) +
  stat_halfeye(adjust = 0.5,
               justification = -0.2,
               .width = 0,
               point_colour = NA) +
  geom_boxplot(width = .20,
               outlier.shape = NA)

Dot Plots

Next, we will add the third geometry layer using stat_dots() of ggdist package. This produces a half-dotplot, which is similar to a histogram that indicates the number of samples (number of dots) in each bin. We select side = “left” to indicate we want it on the left-hand side.

Code

ggplot(exam,
       aes(x = RACE,
           y = ENGLISH)) +
  stat_halfeye(adjust = 0.5,
               justification = -0.2,
               .width = 0,
               point_colour = NA) +
  geom_boxplot(width = .20,
               outlier.shape = NA) +
  stat_dots(side = "left",
            justification = 1.2,
            binwidth = .5,
            dotsize = 2)

Final

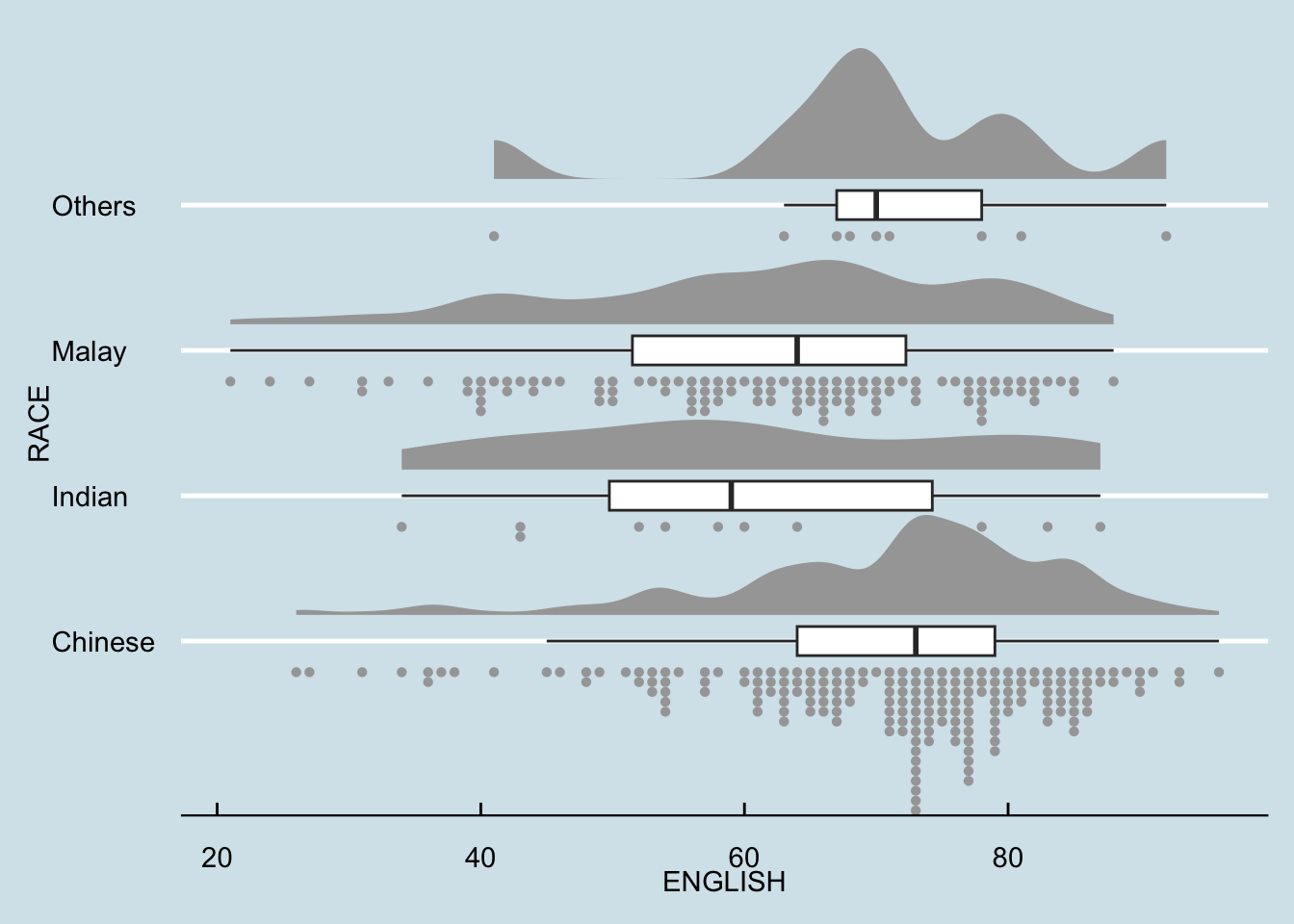

Lastly, coord_flip() of ggplot2 package will be used to flip the raincloud chart horizontally to give it the raincloud appearance. At the same time, theme_economist() of ggthemes package is used to give the raincloud chart a professional publishing standard look.

Code

ggplot(exam,
       aes(x = RACE,
           y = ENGLISH)) +
  stat_halfeye(adjust = 0.5,
               justification = -0.2,
               .width = 0,
               point_colour = NA) +
  geom_boxplot(width = .20,
               outlier.shape = NA) +
  stat_dots(side = "left",
            justification = 1.2,
            binwidth = .5,
            dotsize = 1.5) +
  coord_flip() +
  theme_economist()

Statistical Analysis

3 packages will be used:

• ggstatsplot package to create visual graphics with rich statistical information: It is an extension of ggplot2 package for creating graphics with details from statistical tests included in the information-rich plots themselves.

  • To provide alternative statistical inference methods by default.

  • To follow best practices for statistical reporting. For all statistical tests reported in the plots, the default template abides by the APA gold standard for statistical reporting.

• performance package to visualise model diagnostics, and

• parameters package to visualise model parameters

ggstatsplot

Installing and loading the required libraries

Code

pacman::p_load(ggstatsplot, tidyverse)

Importing data

The code chunk below is to import the data

Code

exam <- read_csv("data/Exam_data.csv")

Significant Test

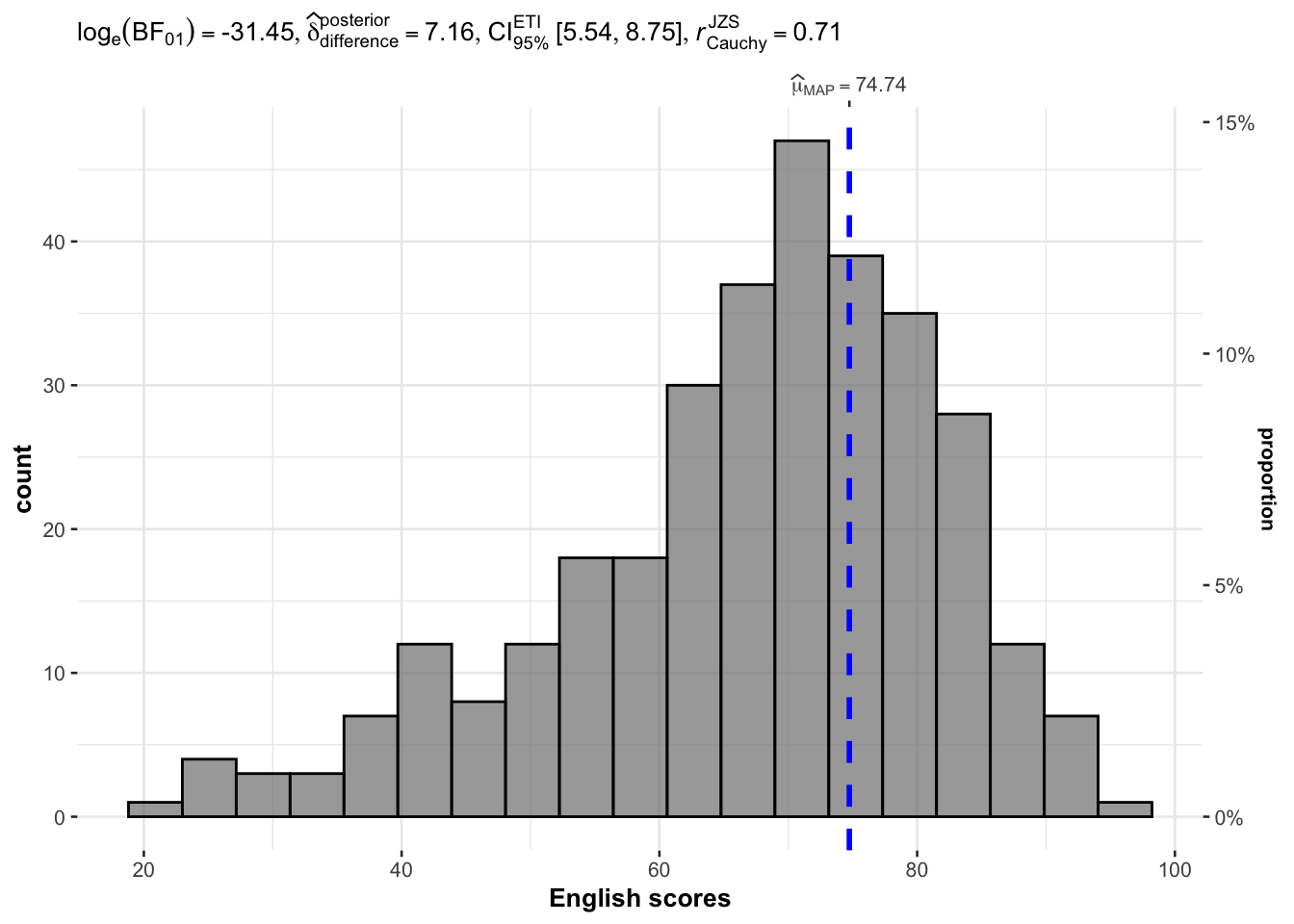

One-sample

In the code chunk below, gghistostats() is used to to build an visual of one-sample test on English scores.

Code

set.seed(1234)

gghistostats(
  data = exam,
  x = ENGLISH,
  type = "bayes",
  test.value = 60,
  xlab = "English scores"
)

Default information: - statistical details - Bayes Factor - sample sizes - distribution summary

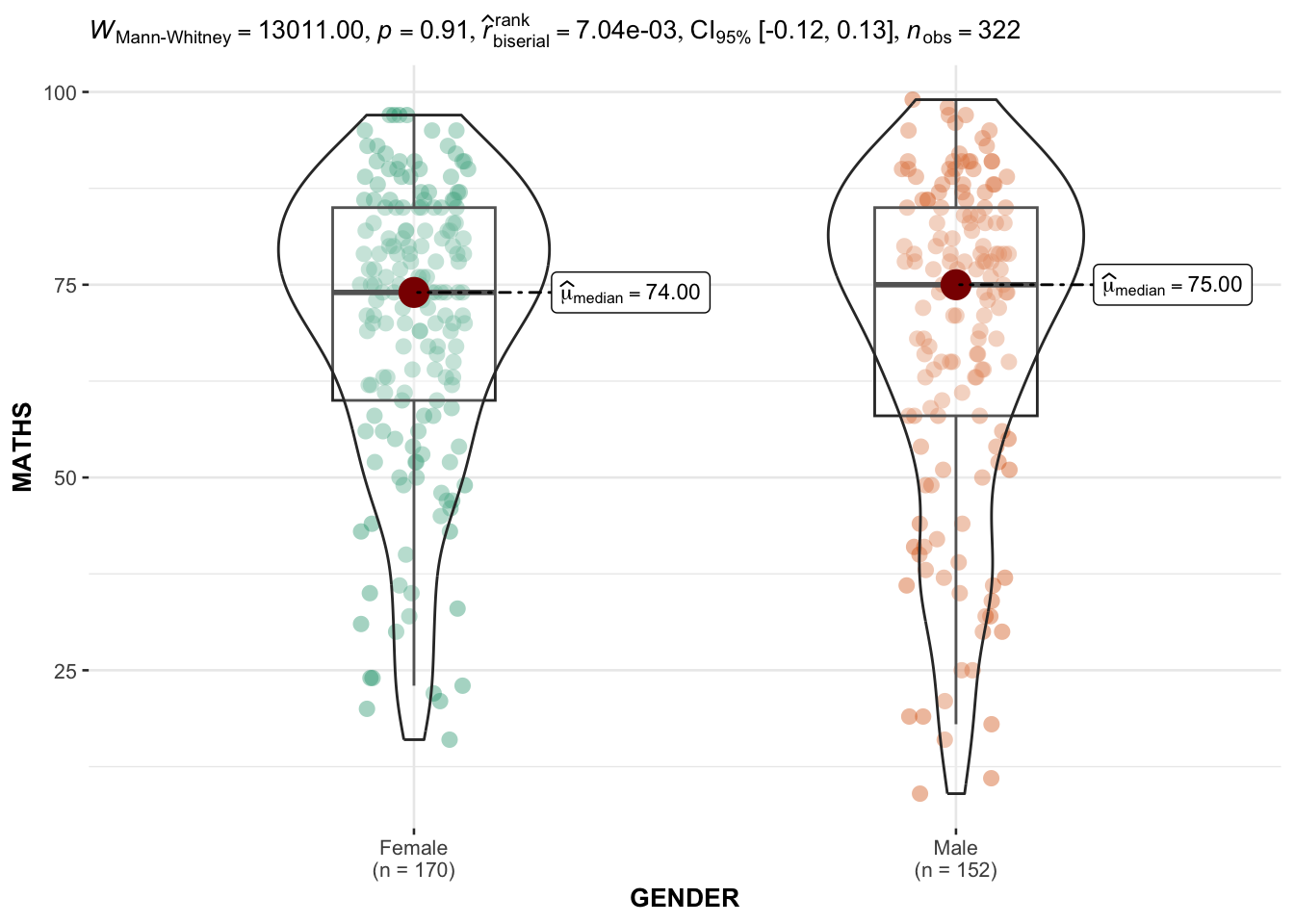

Two-sample Mean

In the code chunk below, ggbetweenstats() is used to build a visual for two-sample mean test of Maths scores by gender.

Code

ggbetweenstats(
  data = exam,
  x = GENDER,
  y = MATHS,
  type = "np",
  messages = FALSE
)

Default information: - statistical details - Bayes Factor - sample sizes - distribution summary

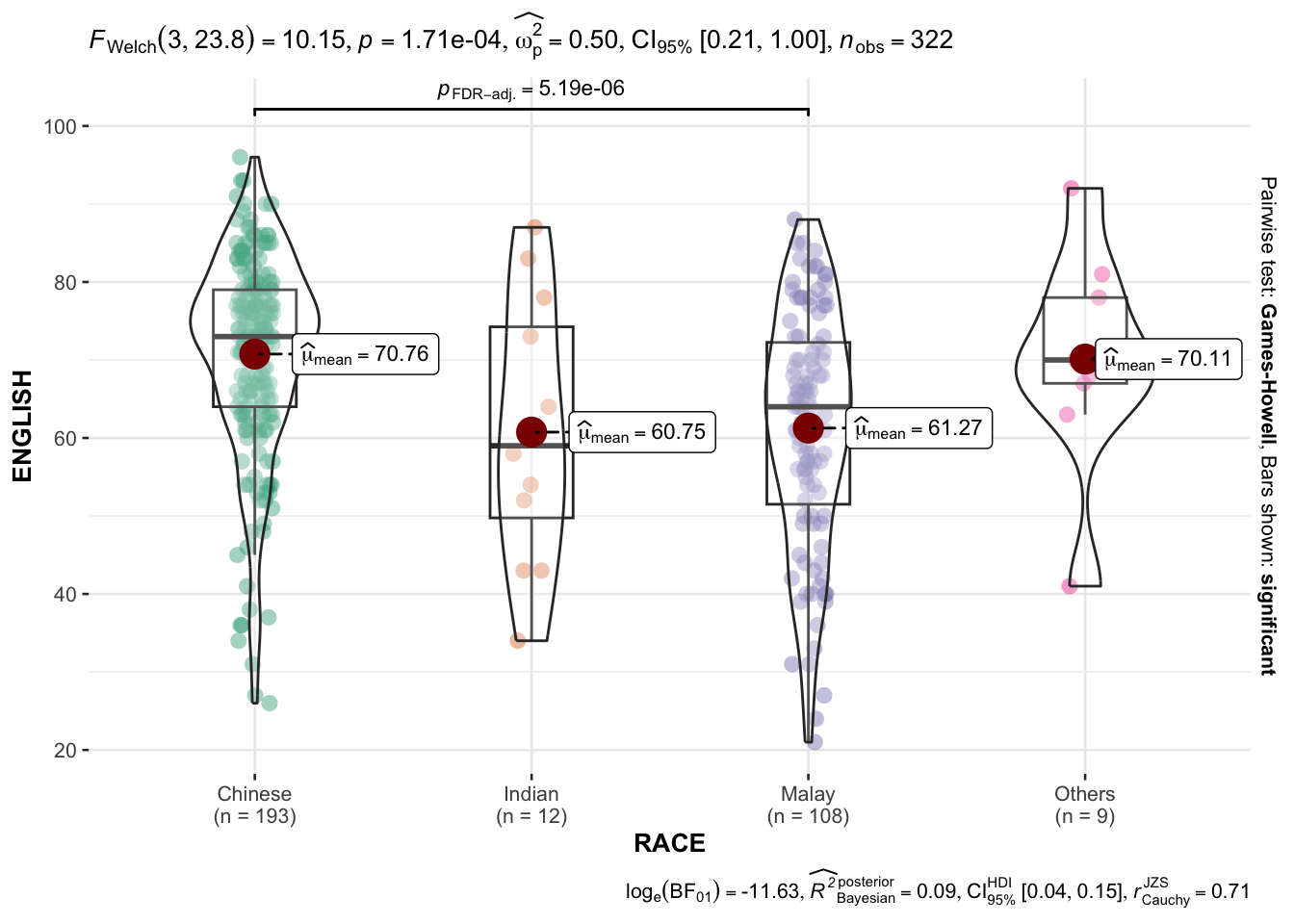

Oneway ANOVA

In the code chunk below, ggbetweenstats() is used to build a visual for One-way ANOVA test on English score by race.

Code

ggbetweenstats(
  data = exam,
  x = RACE,
  y = ENGLISH,
  type = "p",
  mean.ci = TRUE,
  pairwise.comparisons = TRUE,
  pairwise.display = "s",
  p.adjust.method = "fdr",
  messages = FALSE
)

• “ns” → only non-significant

• “s” → only significant

• “all” → everything

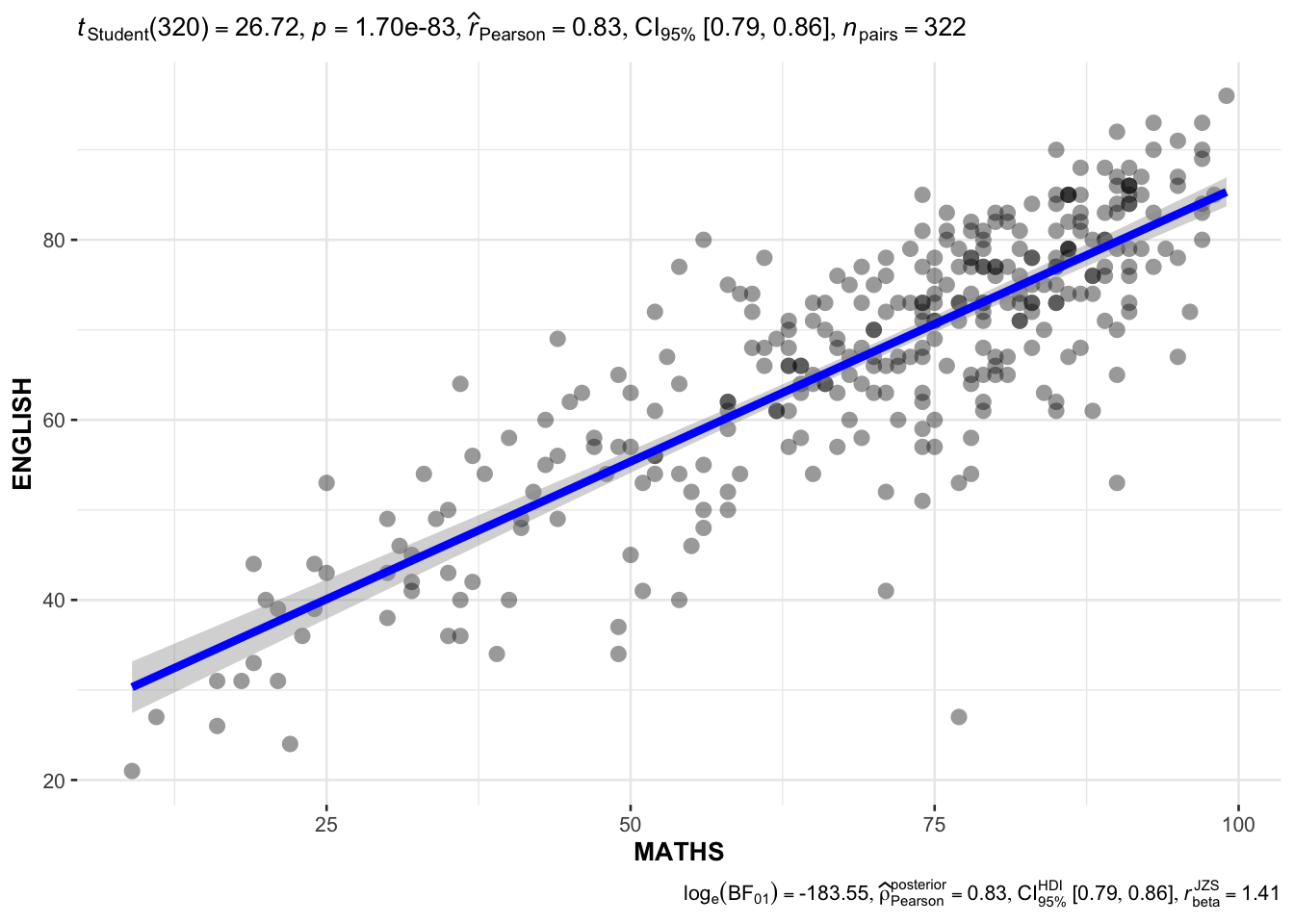

Correlation

In the code chunk below, ggscatterstats() is used to build a visual for Significant Test of Correlation between Maths scores and English scores.

Code

ggscatterstats(
  data = exam,
  x = MATHS,
  y = ENGLISH,
  marginal = FALSE,
  )

Association (Depedence)

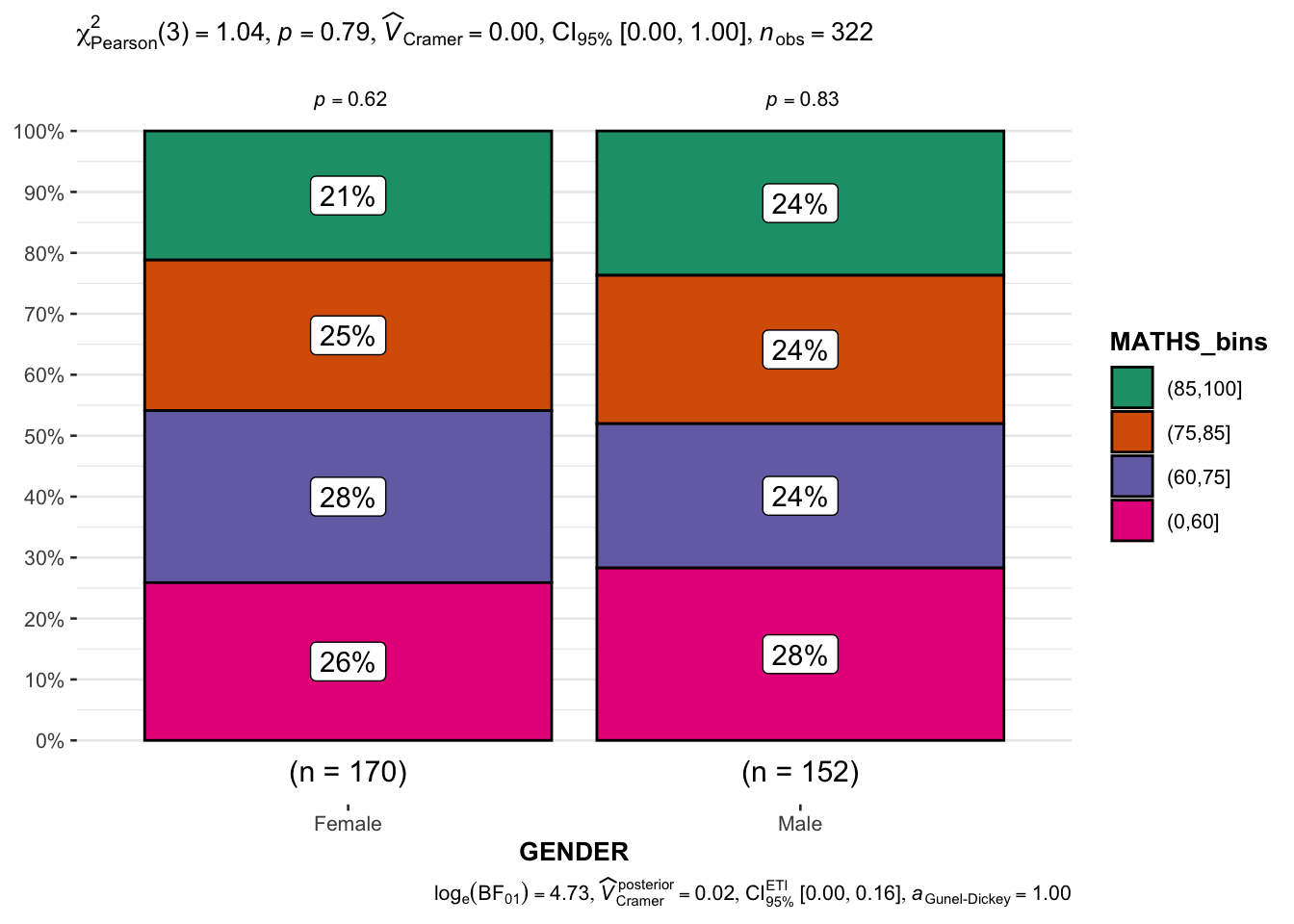

In the code chunk below, the Maths scores is binned into a 4-class variable by using cut(). And ggbarstats() is used to build a visual for Significant Test of Association

Code

exam1 <- exam %>%
  mutate(MATHS_bins =
           cut(MATHS,
               breaks = c(0,60,75,85,100))
)
ggbarstats(exam1,
           x = MATHS_bins,
           y = GENDER)

Unpacking the Bayes Factor

• A Bayes factor is the ratio of the likelihood of one particular hypothesis to the likelihood of another. It can be interpreted as a measure of the strength of evidence in favor of one theory among two competing theories.

• That’s because the Bayes factor gives us a way to evaluate the data in favor of a null hypothesis, and to use external information to do so. It tells us what the weight of the evidence is in favor of a given hypothesis.

• When we are comparing two hypotheses, H1 (the alternate hypothesis) and H0 (the null hypothesis), the Bayes Factor is often written as B10.

• The Schwarz criterion is one of the easiest ways to calculate rough approximation of the Bayes Factor.

A Bayes Factor can be any positive number. One of the most common interpretations is this one—first proposed by Harold Jeffereys (1961) and slightly modified by Lee and Wagenmakers in 2013.

Models

This section aims to visualise model diagnostic and model parameters by using parameters package.

• Toyota Corolla case study will be used. The purpose of study is to build a model to discover factors affecting prices of used-cars by taking into consideration a set of explanatory variables.

Installing and loading the required libraries

Code

pacman::p_load(readxl, performance, parameters, see)

Importing data

In the code chunk below, read_xls() of readxl package is used to import the data worksheet of ToyotaCorolla.xls workbook into R.

Code

car_resale <- read_xls("data/ToyotaCorolla.xls",
                       "data")
car_resale

# A tibble: 1,436 × 38
      Id Model    Price Age_08_04 Mfg_Month Mfg_Year     KM Quarterly_Tax Weight
   <dbl> <chr>    <dbl>     <dbl>     <dbl>    <dbl>  <dbl>         <dbl>  <dbl>
 1    81 TOYOTA … 18950        25         8     2002  20019           100   1180
 2     1 TOYOTA … 13500        23        10     2002  46986           210   1165
 3     2 TOYOTA … 13750        23        10     2002  72937           210   1165
 4     3  TOYOTA… 13950        24         9     2002  41711           210   1165
 5     4 TOYOTA … 14950        26         7     2002  48000           210   1165
 6     5 TOYOTA … 13750        30         3     2002  38500           210   1170
 7     6 TOYOTA … 12950        32         1     2002  61000           210   1170
 8     7  TOYOTA… 16900        27         6     2002  94612           210   1245
 9     8 TOYOTA … 18600        30         3     2002  75889           210   1245
10    44 TOYOTA … 16950        27         6     2002 110404           234   1255
# ℹ 1,426 more rows
# ℹ 29 more variables: Guarantee_Period <dbl>, HP_Bin <chr>, CC_bin <chr>,
#   Doors <dbl>, Gears <dbl>, Cylinders <dbl>, Fuel_Type <chr>, Color <chr>,
#   Met_Color <dbl>, Automatic <dbl>, Mfr_Guarantee <dbl>,
#   BOVAG_Guarantee <dbl>, ABS <dbl>, Airbag_1 <dbl>, Airbag_2 <dbl>,
#   Airco <dbl>, Automatic_airco <dbl>, Boardcomputer <dbl>, CD_Player <dbl>,
#   Central_Lock <dbl>, Powered_Windows <dbl>, Power_Steering <dbl>, …

Notice that the output object car_resale is a tibble data frame.

Multiple Regression Model using lm()

The code chunk below is used to calibrate a multiple linear regression model by using lm() of Base Stats of R.

Code

model <- lm(Price ~ Age_08_04 + Mfg_Year + KM +
              Weight + Guarantee_Period, data = car_resale)
model

Call:
lm(formula = Price ~ Age_08_04 + Mfg_Year + KM + Weight + Guarantee_Period,
    data = car_resale)

Coefficients:
     (Intercept)         Age_08_04          Mfg_Year                KM
      -2.637e+06        -1.409e+01         1.315e+03        -2.323e-02
          Weight  Guarantee_Period
       1.903e+01         2.770e+01

Model Diagnostic

multicolinearity

In the code chunk, check_collinearity() of performance package.

Code

check_collinearity(model)

# Check for Multicollinearity

Low Correlation

             Term  VIF     VIF 95% CI Increased SE Tolerance Tolerance 95% CI
               KM 1.46 [ 1.37,  1.57]         1.21      0.68     [0.64, 0.73]
           Weight 1.41 [ 1.32,  1.51]         1.19      0.71     [0.66, 0.76]
 Guarantee_Period 1.04 [ 1.01,  1.17]         1.02      0.97     [0.86, 0.99]

High Correlation

      Term   VIF     VIF 95% CI Increased SE Tolerance Tolerance 95% CI
 Age_08_04 31.07 [28.08, 34.38]         5.57      0.03     [0.03, 0.04]
  Mfg_Year 31.16 [28.16, 34.48]         5.58      0.03     [0.03, 0.04]

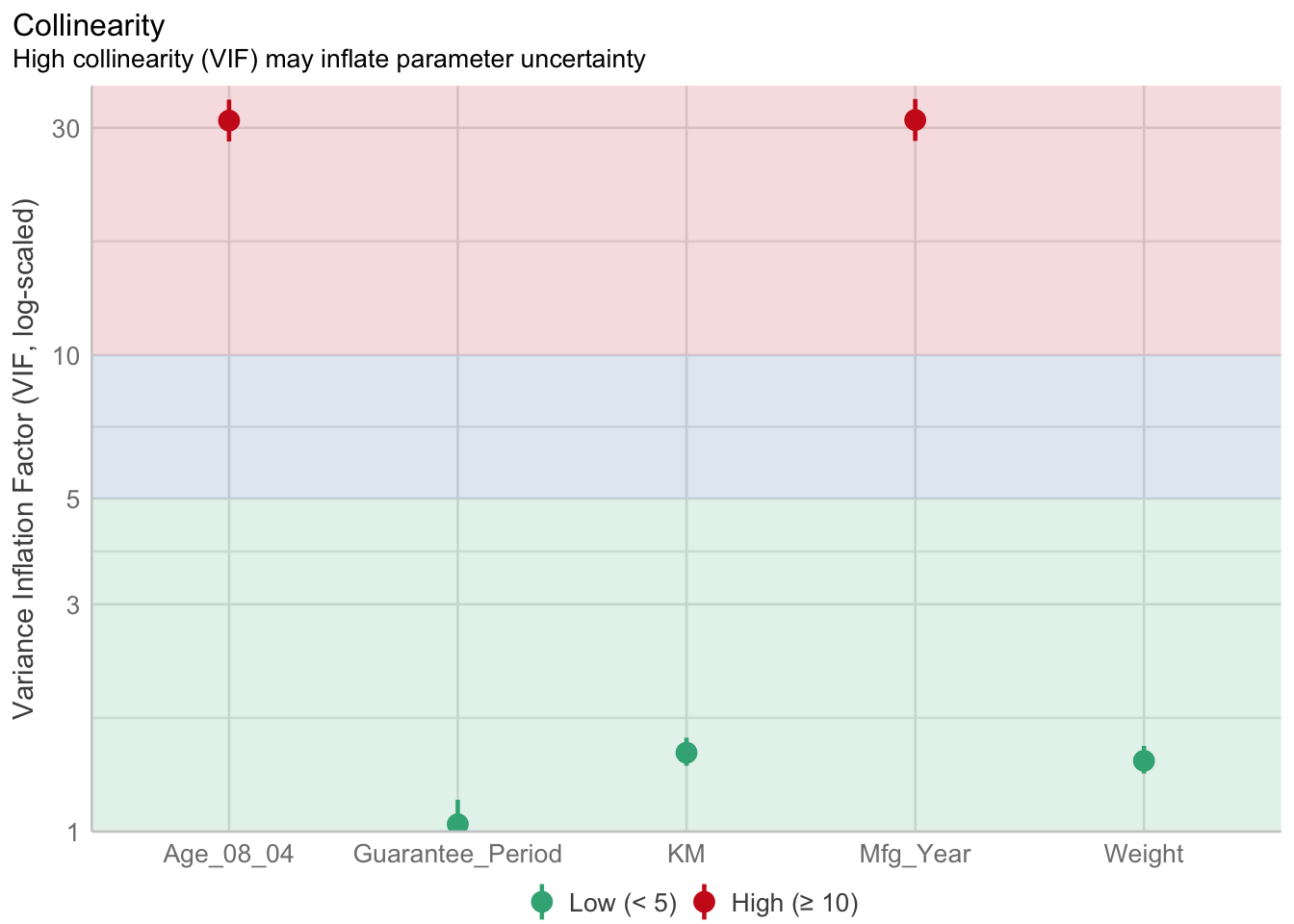

Code

check_c <- check_collinearity(model)
plot(check_c)

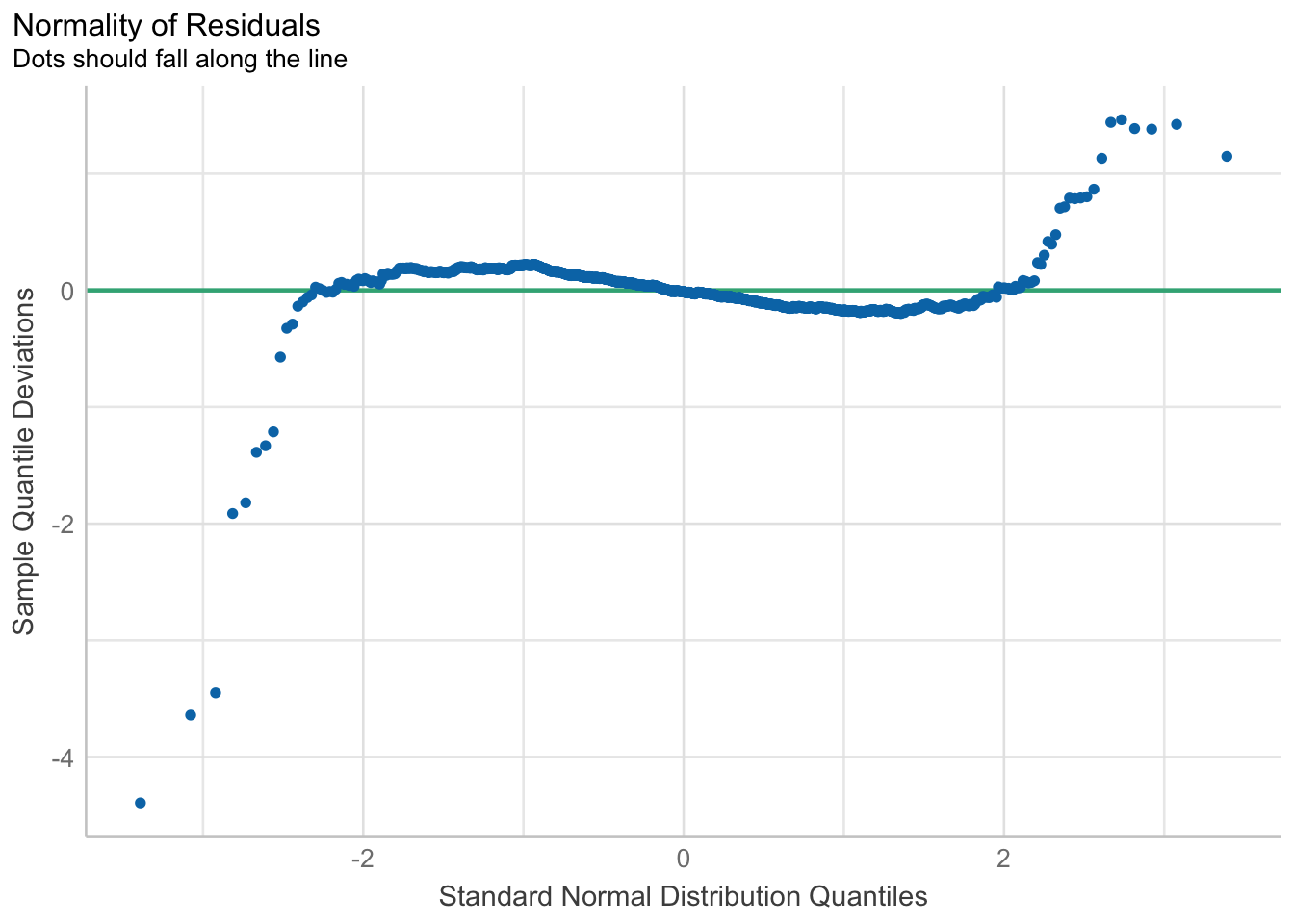

normality assumption

In the code chunk, check_normality() of performance package.

Code

model1 <- lm(Price ~ Age_08_04 + KM +
              Weight + Guarantee_Period, data = car_resale)
check_n <- check_normality(model1)
plot(check_n)

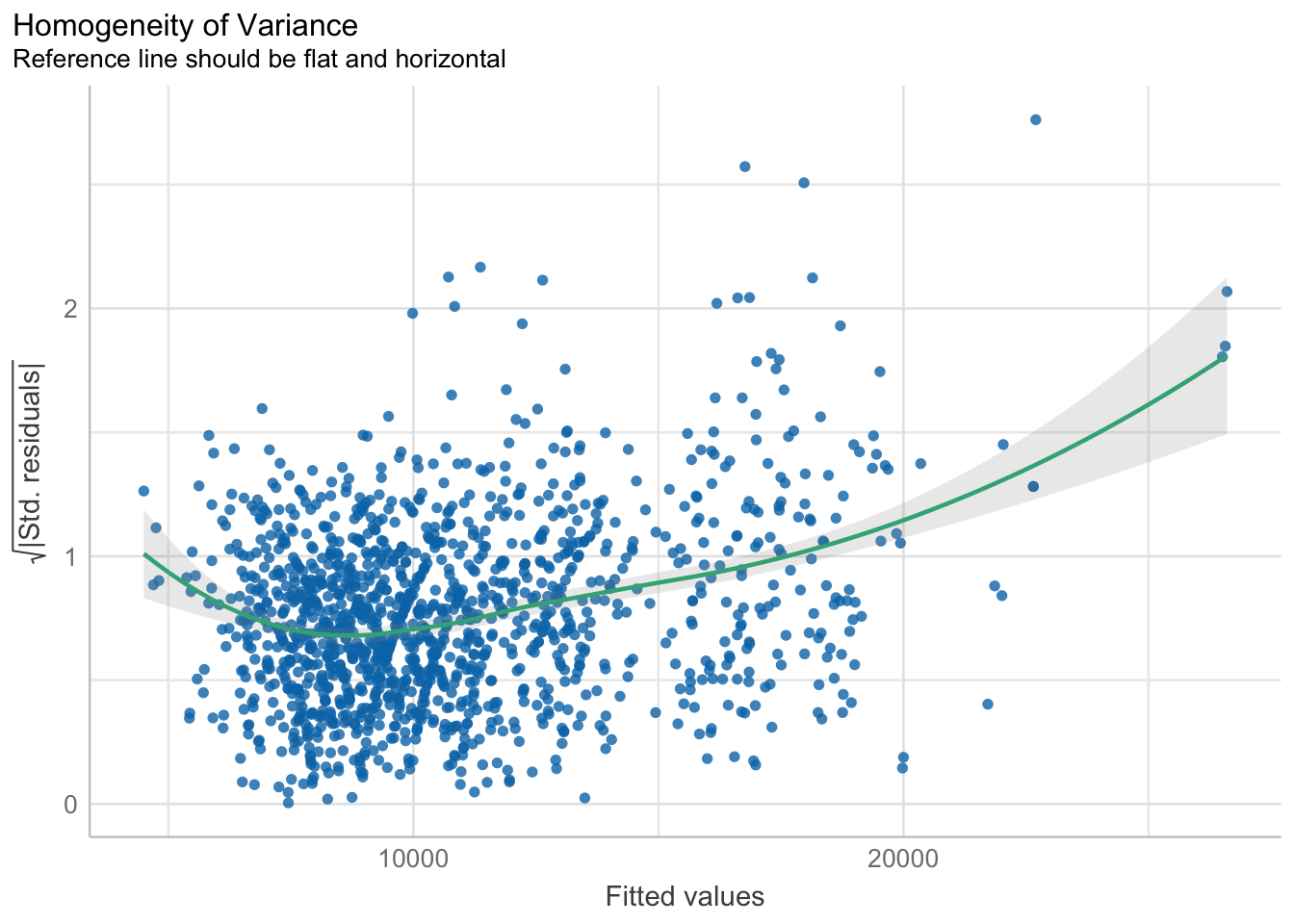

homogeneity of variances

In the code chunk, check_heteroscedasticity() of performance package.

Code

check_h <- check_heteroscedasticity(model1)
plot(check_h)

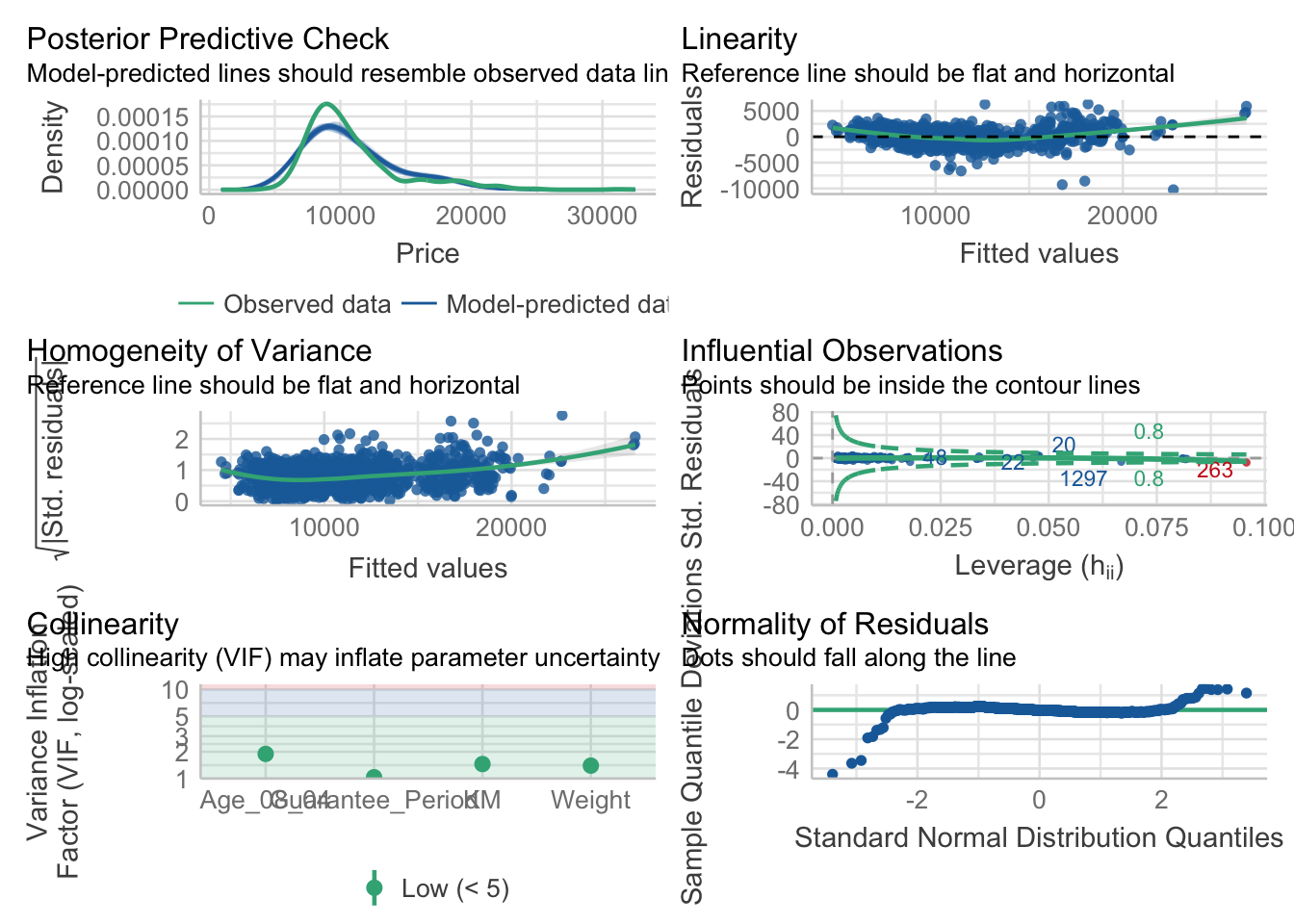

Complete check

We can also perform the complete by using check_model().

Code

check_model(model1)

Visualising Regression Parameters

see methods

In the code below, plot() of see package and parameters() of parameters package is used to visualise the parameters of a regression model.

Code

plot(parameters(model1))

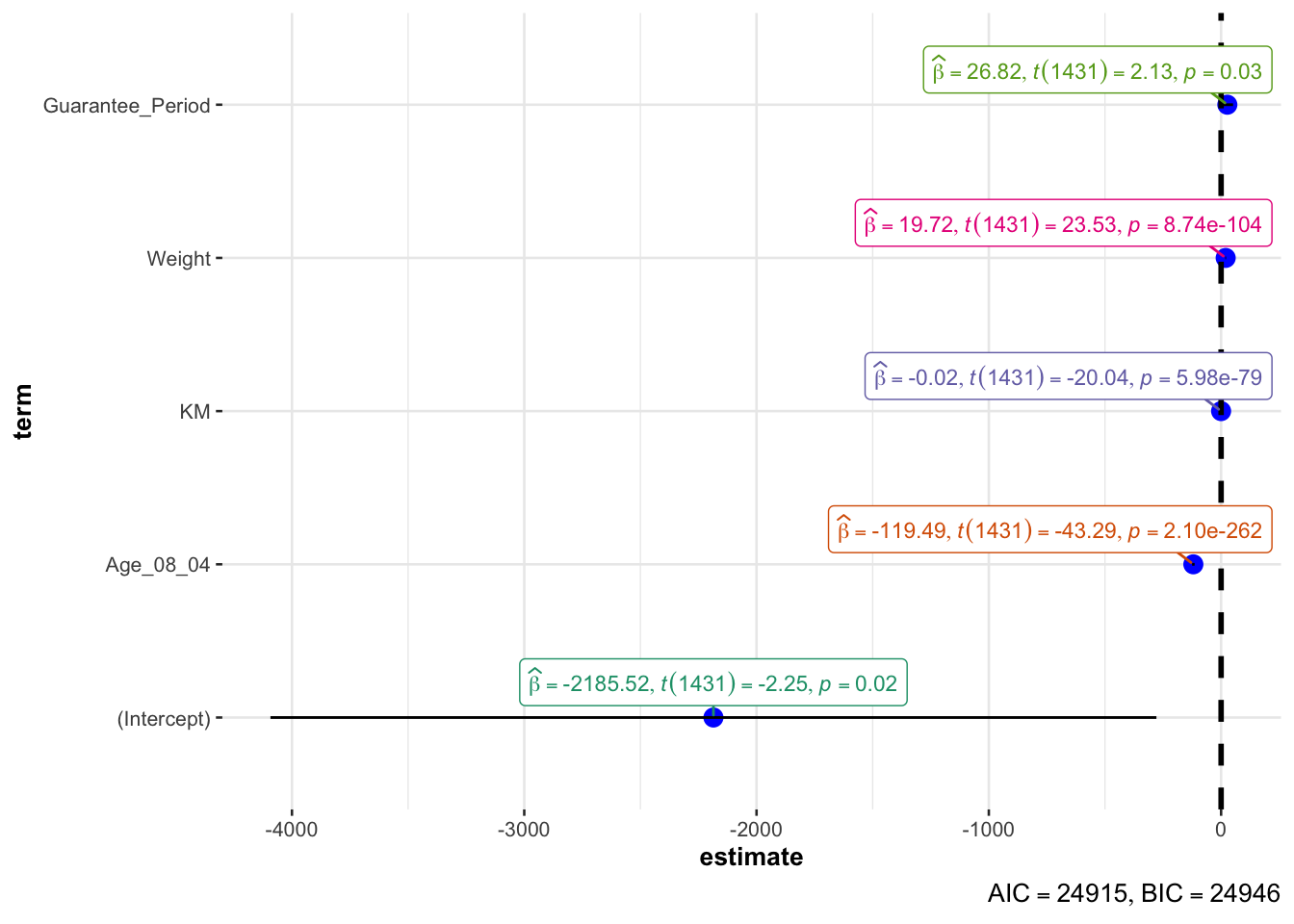

ggcoefstats() methods

In the code below, ggcoefstats() of ggstatsplot package to visualise the parameters of a regression model.

Code

ggcoefstats(model1,
            output = "plot")

Uncertainty

Visualising uncertainty is relatively new in statistical graphics. Aim for the section below:

• to plot statistics error bars by using ggplot2,

• to plot interactive error bars by combining ggplot2, plotly and DT,

• to create advanced by using ggdist, and

• to create hypothetical outcome plots (HOPs) by using ungeviz package.

Installing and loading the packages

following R packages will be used, they are:

• tidyverse, a family of R packages for data science process,

• plotly for creating interactive plot,

• gganimate for creating animation plot,

• DT for displaying interactive html table,

• crosstalk for for implementing cross-widget interactions (currently, linked brushing and filtering), and

• ggdist for visualising distribution and uncertainty.

Code

devtools::install_github("wilkelab/ungeviz")

Code

pacman::p_load(ungeviz, plotly, crosstalk,
               DT, ggdist, ggridges,
               colorspace, gganimate, tidyverse)

Data import

Code

exam <- read_csv("data/Exam_data.csv")

ggplot2 methods

A point estimate is a single number, such as a mean. Uncertainty, on the other hand, is expressed as standard error, confidence interval, or credible interval.

Note

Don’t confuse the uncertainty of a point estimate with the variation in the sample

Firstly, code chunk below will be used to derive the necessary summary statistics.

Code

my_sum <- exam %>%
  group_by(RACE) %>%
  summarise(
    n=n(),
    mean=mean(MATHS),
    sd=sd(MATHS)
    ) %>%
  mutate(se=sd/sqrt(n-1))

Things to learn from the code chunk above

• group_by() of dplyr package is used to group the observation by RACE,

• summarise() is used to compute the count of observations, mean, standard deviation

• mutate() is used to derive standard error of Maths by RACE, and

• the output is save as a tibble data table called my_sum.

Next, the code chunk below will be used to display my_sum tibble data frame in an html table format.

Code

knitr::kable(head(my_sum), format = 'html')

RACE	n	mean	sd	se
Chinese	193	76.50777	15.69040	1.132357
Indian	12	60.66667	23.35237	7.041005
Malay	108	57.44444	21.13478	2.043177
Others	9	69.66667	10.72381	3.791438

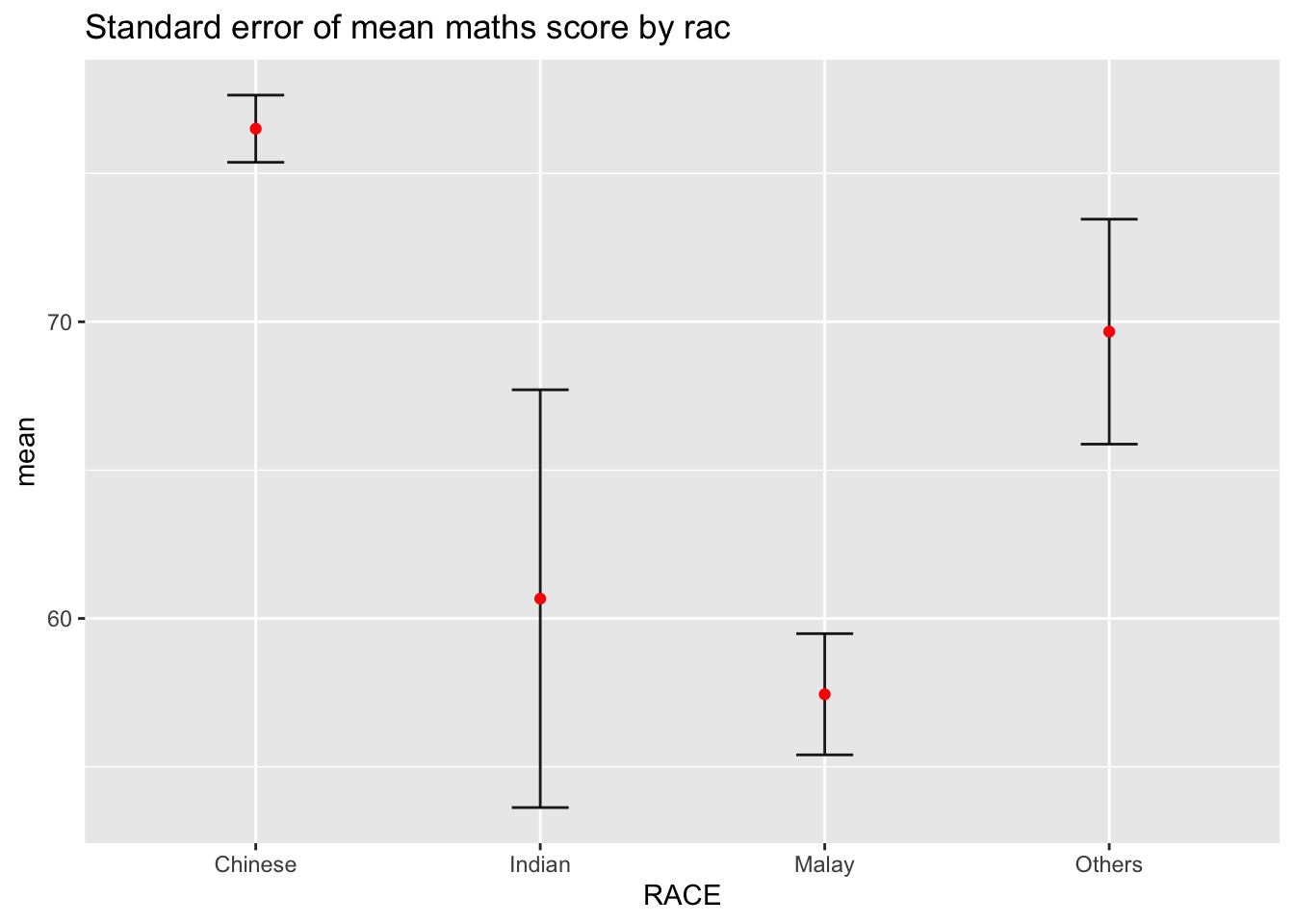

Standard Error Bars

plot the standard error bars of mean maths score by race as shown below.

• The error bars are computed by using the formula mean+/-se.

• For geom_point(), it is important to indicate stat=“identity”.

Code

ggplot(my_sum) +
  geom_errorbar(
    aes(x=RACE,
        ymin=mean-se,
        ymax=mean+se),
    width=0.2,
    colour="black",
    alpha=0.9,
    size=0.5) +
  geom_point(aes
           (x=RACE,
            y=mean),
           stat="identity",
           color="red",
           size = 1.5,
           alpha=1) +
  ggtitle("Standard error of mean maths score by rac")

Confidence Interval

Instead of plotting the standard error bar of point estimates, we can also plot the confidence intervals of mean maths score by race.

• The confidence intervals are computed by using the formula mean+/-1.96*se.

• The error bars is sorted by using the average maths scores.

• labs() argument of ggplot2 is used to change the x-axis label.

Code

ggplot(my_sum) +
  geom_errorbar(
    aes(x=reorder(RACE, -mean),
        ymin=mean-1.96*se,
        ymax=mean+1.96*se),
    width=0.2,
    colour="black",
    alpha=0.9,
    size=0.5) +
  geom_point(aes
           (x=RACE,
            y=mean),
           stat="identity",
           color="red",
           size = 1.5,
           alpha=1) +
  labs(x = "Maths score",
       title = "95% confidence interval of mean maths score by race")

Interactive Error Bars

interactive error bars for the 99% confidence interval of mean maths score by race as shown in the figure below

Code

shared_df = SharedData$new(my_sum)

bscols(widths = c(4,8),
       ggplotly((ggplot(shared_df) +
                   geom_errorbar(aes(
                     x=reorder(RACE, -mean),
                     ymin=mean-2.58*se,
                     ymax=mean+2.58*se),
                     width=0.2,
                     colour="black",
                     alpha=0.9,
                     size=0.5) +
                   geom_point(aes(
                     x=RACE,
                     y=mean,
                     text = paste("Race:", `RACE`,
                                  "<br>N:", `n`,
                                  "<br>Avg. Scores:", round(mean, digits = 2),
                                  "<br>95% CI:[",
                                  round((mean-2.58*se), digits = 2), ",",
                                  round((mean+2.58*se), digits = 2),"]")),
                     stat="identity",
                     color="red",
                     size = 1.5,
                     alpha=1) +
                   xlab("Race") +
                   ylab("Average Scores") +
                   theme_minimal() +
                   theme(axis.text.x = element_text(
                     angle = 45, vjust = 0.5, hjust=1)) +
                   ggtitle("99% Confidence interval of average /<br>maths scores by race")),
                tooltip = "text"),
       DT::datatable(shared_df,
                     rownames = FALSE,
                     class="compact",
                     width="100%",
                     options = list(pageLength = 10,
                                    scrollX=T),
                     colnames = c("No. of pupils",
                                  "Avg Scores",
                                  "Std Dev",
                                  "Std Error")) %>%
         formatRound(columns=c('mean', 'sd', 'se'),
                     digits=2))

ggdist package

• ggdist is an R package that provides a flexible set of ggplot2 geoms and stats designed especially for visualising distributions and uncertainty.

• It is designed for both frequentist and Bayesian uncertainty visualization, taking the view that uncertainty visualization can be unified through the perspective of distribution visualization:

  • for frequentist models, one visualises confidence distributions or bootstrap distributions (see vignette(“freq-uncertainty-vis”));

  • for Bayesian models, one visualises probability distributions (see the tidybayes package, which builds on top of ggdist).

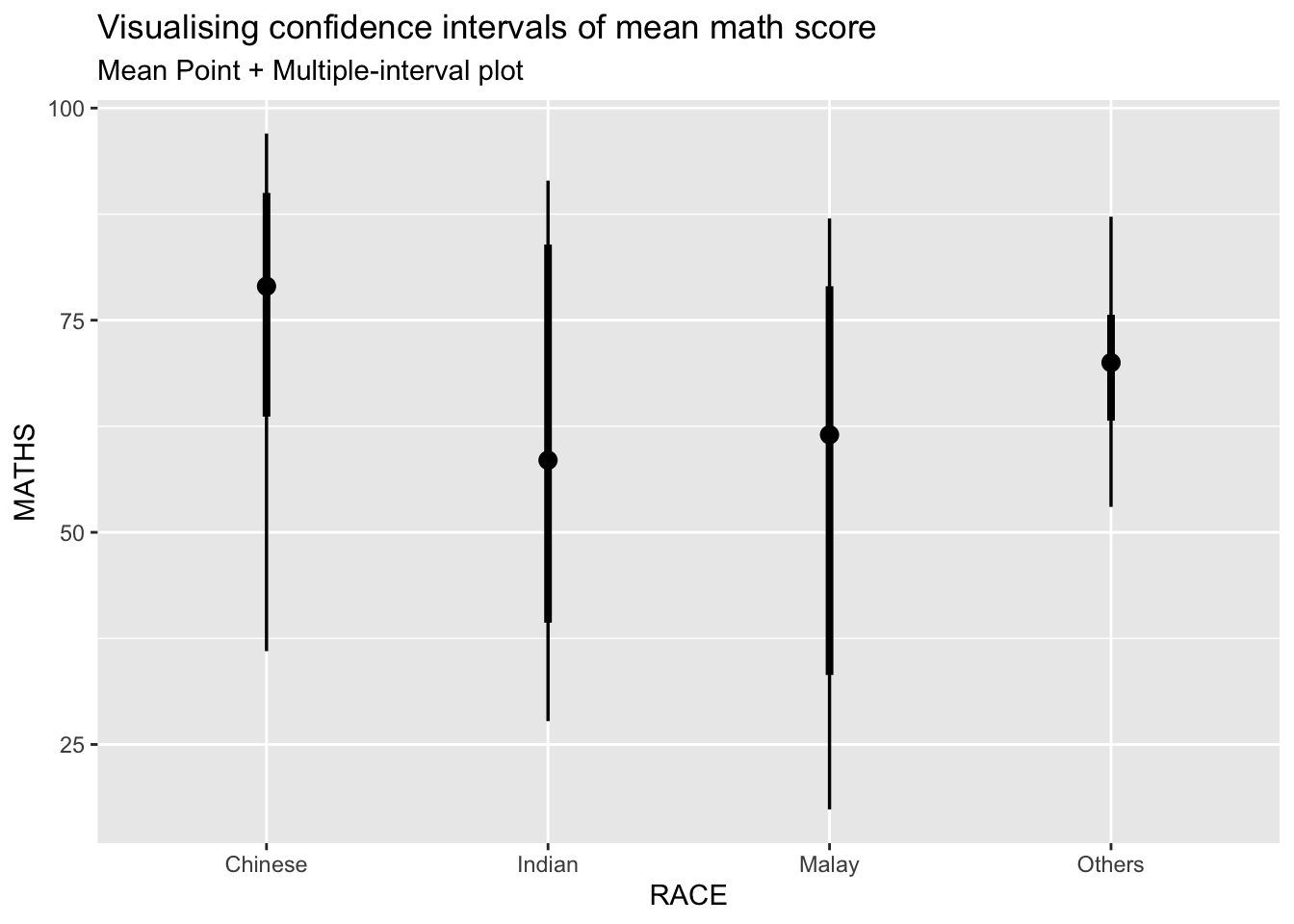

Default

In the code chunk below, stat_pointinterval() of ggdist is used to build a visual for displaying distribution of maths scores by race.

Code

exam %>%
  ggplot(aes(x = RACE,
             y = MATHS)) +
  stat_pointinterval() +
  labs(
    title = "Visualising confidence intervals of mean math score",
    subtitle = "Mean Point + Multiple-interval plot")

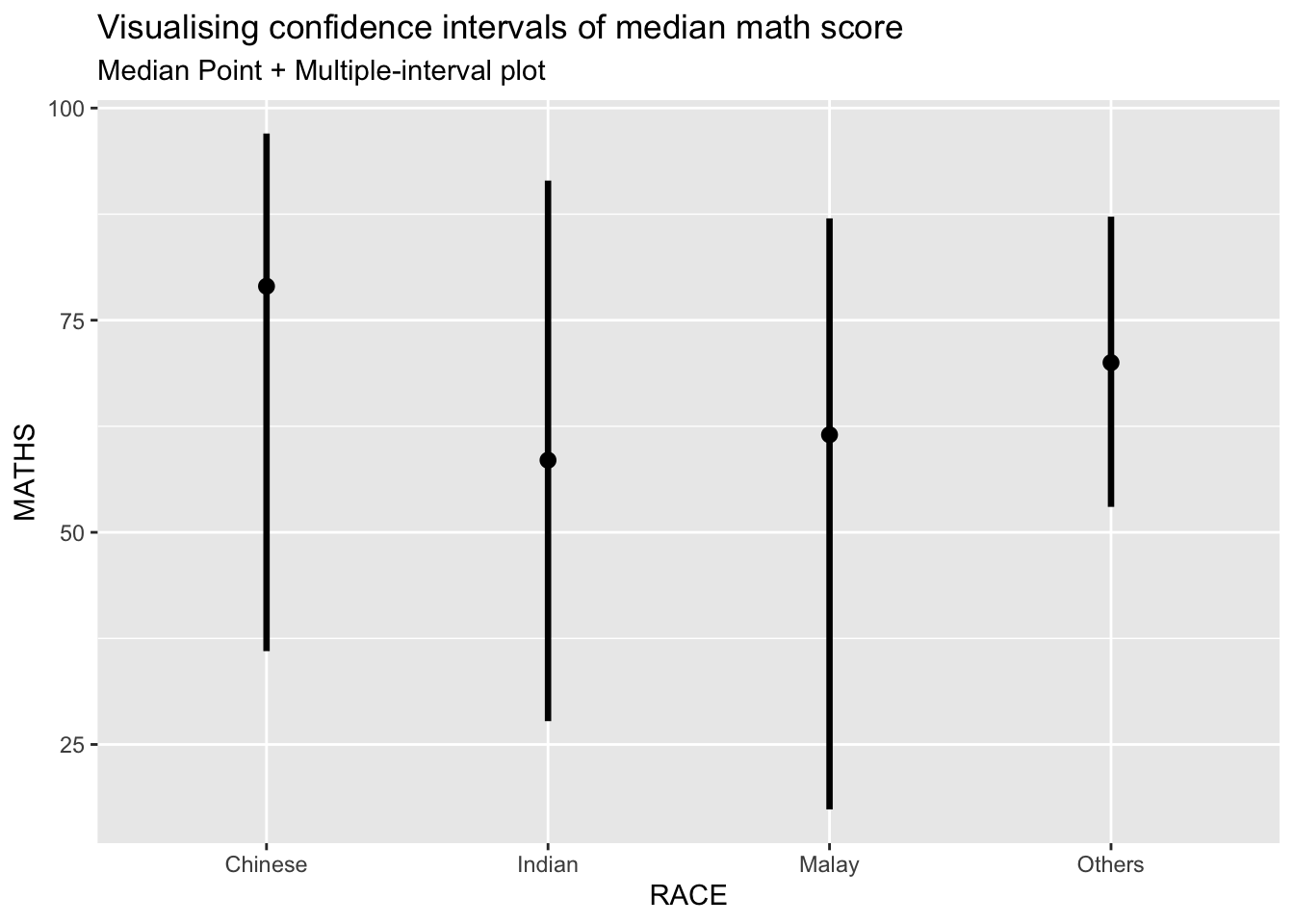

Median

In the code chunk below the following arguments are used:

• .width = 0.95

• .point = median

• .interval = qi

Code

exam %>%
  ggplot(aes(x = RACE, y = MATHS)) +
  stat_pointinterval(.width = 0.95,
  .point = median,
  .interval = qi) +
  labs(
    title = "Visualising confidence intervals of median math score",
    subtitle = "Median Point + Multiple-interval plot")

95 & 99 CI

The code below use .width = c(0.95, 0.99) to show 95% and 99% confidence intervals.

Code

exam %>%
  ggplot(aes(x = RACE,
             y = MATHS)) +
  stat_pointinterval(
    .width = c(0.95, 0.99),
    show.legend = FALSE) +
  labs(
    title = "Visualising confidence intervals of mean math score",
    subtitle = "Mean Point + Multiple-interval plot")

displaying distribution

In the code chunk below, stat_gradientinterval() of ggdist is used to build a visual for displaying distribution of maths scores by race.

Code

exam %>%
  ggplot(aes(x = RACE,
             y = MATHS)) +
  stat_gradientinterval(
    fill = "skyblue",
    show.legend = TRUE
  ) +
  labs(
    title = "Visualising confidence intervals of mean math score",
    subtitle = "Gradient + interval plot")

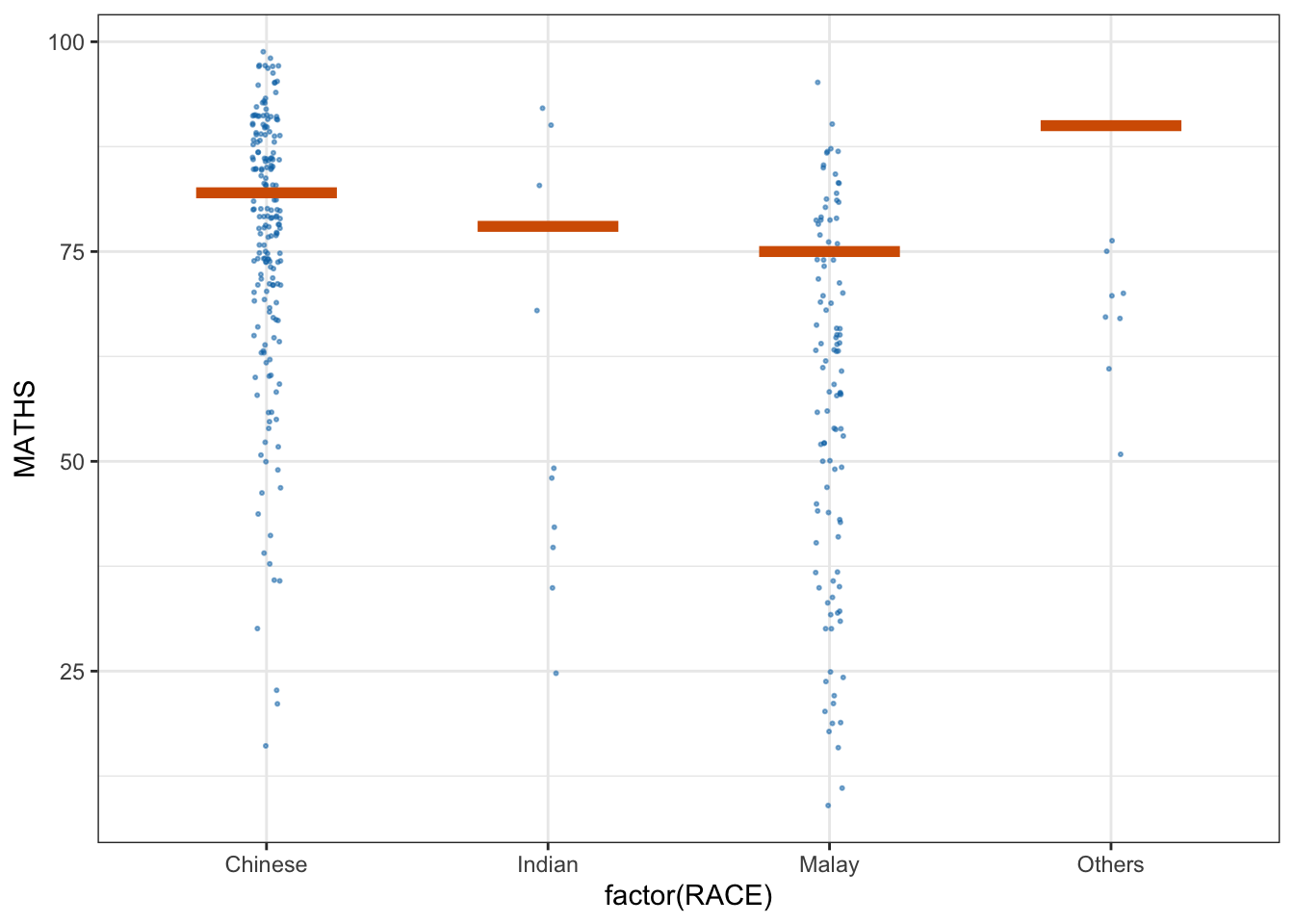

Visualising Uncertainty with Hypothetical Outcome Plots (HOPs)

Step 1: Installing ungeviz package

Code

devtools::install_github("wilkelab/ungeviz")

Step 2: Launch the application in R

Code

library(ungeviz)
ggplot(data = exam,
       (aes(x = factor(RACE), y = MATHS))) +
  geom_point(position = position_jitter(
    height = 0.3, width = 0.05),
    size = 0.4, color = "#0072B2", alpha = 1/2) +
  geom_hpline(data = sampler(25, group = RACE), height = 0.6, color = "#D55E00") +
  theme_bw() +
  # `.draw` is a generated column indicating the sample draw
  transition_states(.draw, 1, 3)

Funnel Plots

Funnel plot is a specially designed data visualisation for conducting unbiased comparison between outlets, stores or business entities. This section focuses on:

• plotting funnel plots by using funnelPlotR package,

• plotting static funnel plot by using ggplot2 package, and

• plotting interactive funnel plot by using both plotly R and ggplot2 packages.

Installing and Launching R Packages

4 R packages will be used. They are:

• readr for importing csv into R.

• FunnelPlotR for creating funnel plot.

• ggplot2 for creating funnel plot manually.

• knitr for building static html table.

• plotly for creating interactive funnel plot.

Code

pacman::p_load(tidyverse, FunnelPlotR, plotly, knitr)

Importing Data

COVID-19_DKI_Jakarta will be used. The data was downloaded from Open Data Covid-19 Provinsi DKI Jakarta portal. For this hands-on exercise, we are going to compare the cumulative COVID-19 cases and death by sub-district (i.e. kelurahan) as at 31st July 2021, DKI Jakarta.

The code chunk below imports the data into R and save it into a tibble data frame object called covid19.

Code

covid19 <- read_csv("data/COVID-19_DKI_Jakarta.csv") %>%
  mutate_if(is.character, as.factor)

FunnelPlotR

FunnelPlotR package uses ggplot to generate funnel plots. It requires a numerator (events of interest), denominator (population to be considered) and group. The key arguments selected for customisation are:

• limit: plot limits (95 or 99).

• label_outliers: to label outliers (true or false).

• Poisson_limits: to add Poisson limits to the plot.

• OD_adjust: to add overdispersed limits to the plot.

• xrange and yrange: to specify the range to display for axes, acts like a zoom function.

• Other aesthetic components such as graph title, axis labels etc.

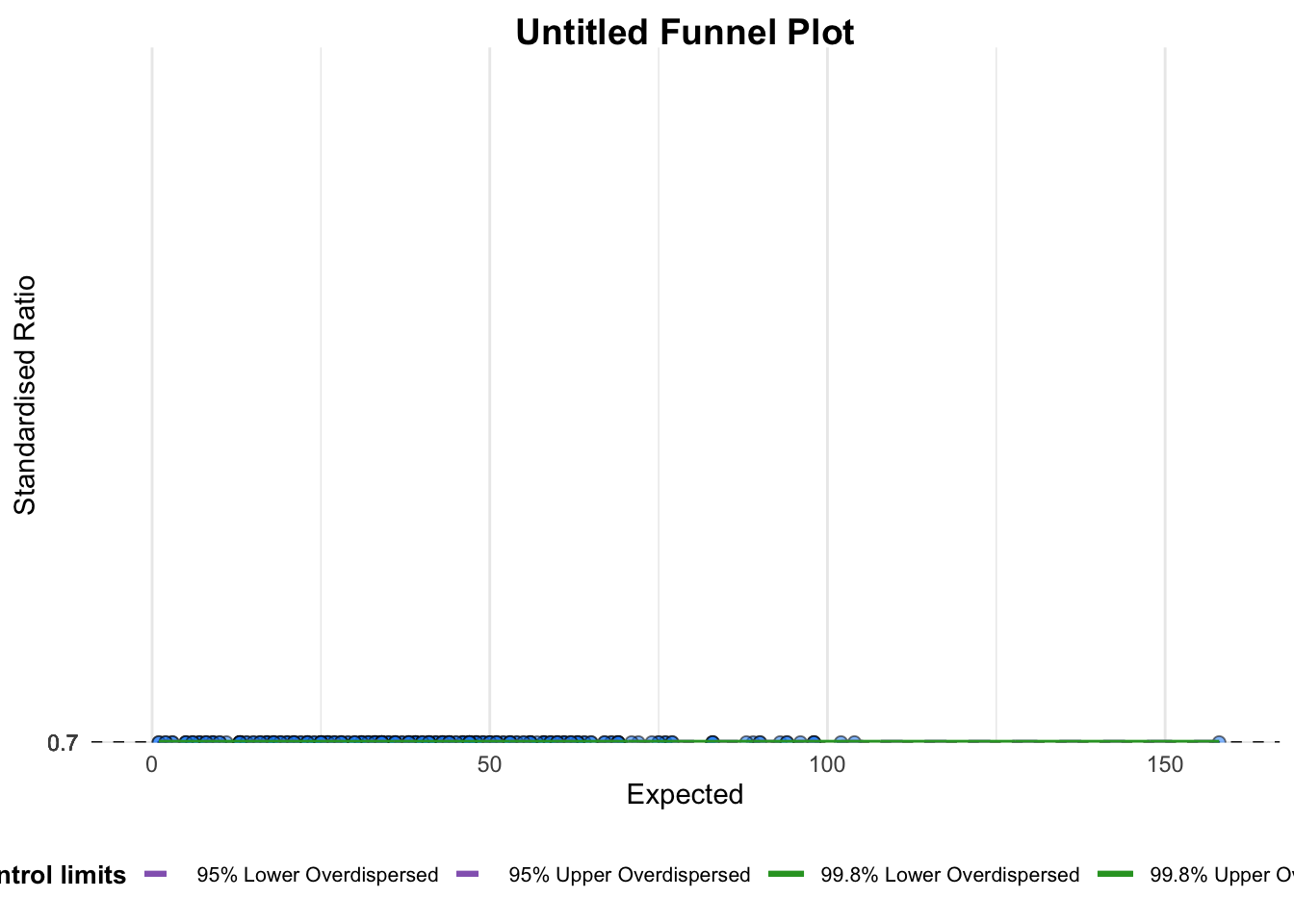

Basic plot

The code chunk below plots a funnel plot.

• group in this function is different from the scatterplot. Here, it defines the level of the points to be plotted i.e. Sub-district, District or City. If Cityc is chosen, there are only six data points.

• By default, data_typeargument is “SR”.

• limit: Plot limits, accepted values are: 95 or 99, corresponding to 95% or 99.8% quantiles of the distribution.

Code

funnel_plot(
  numerator = covid19$Positive,
  denominator = covid19$Death,
  group = covid19$`Sub-district`
)

A funnel plot object with 267 points of which 0 are outliers.
Plot is adjusted for overdispersion.

Change data_type and range

The code chunk below plots a funnel plot.

• data_type argument is used to change from default “SR” to “PR” (i.e. proportions).
• xrange and yrange are used to set the range of x-axis and y-axis

Code

funnel_plot(
  numerator = covid19$Death,
  denominator = covid19$Positive,
  group = covid19$`Sub-district`,
  data_type = "PR",     #<<
  xrange = c(0, 6500),  #<<
  yrange = c(0, 0.05)   #<<
)

A funnel plot object with 267 points of which 7 are outliers.
Plot is adjusted for overdispersion.

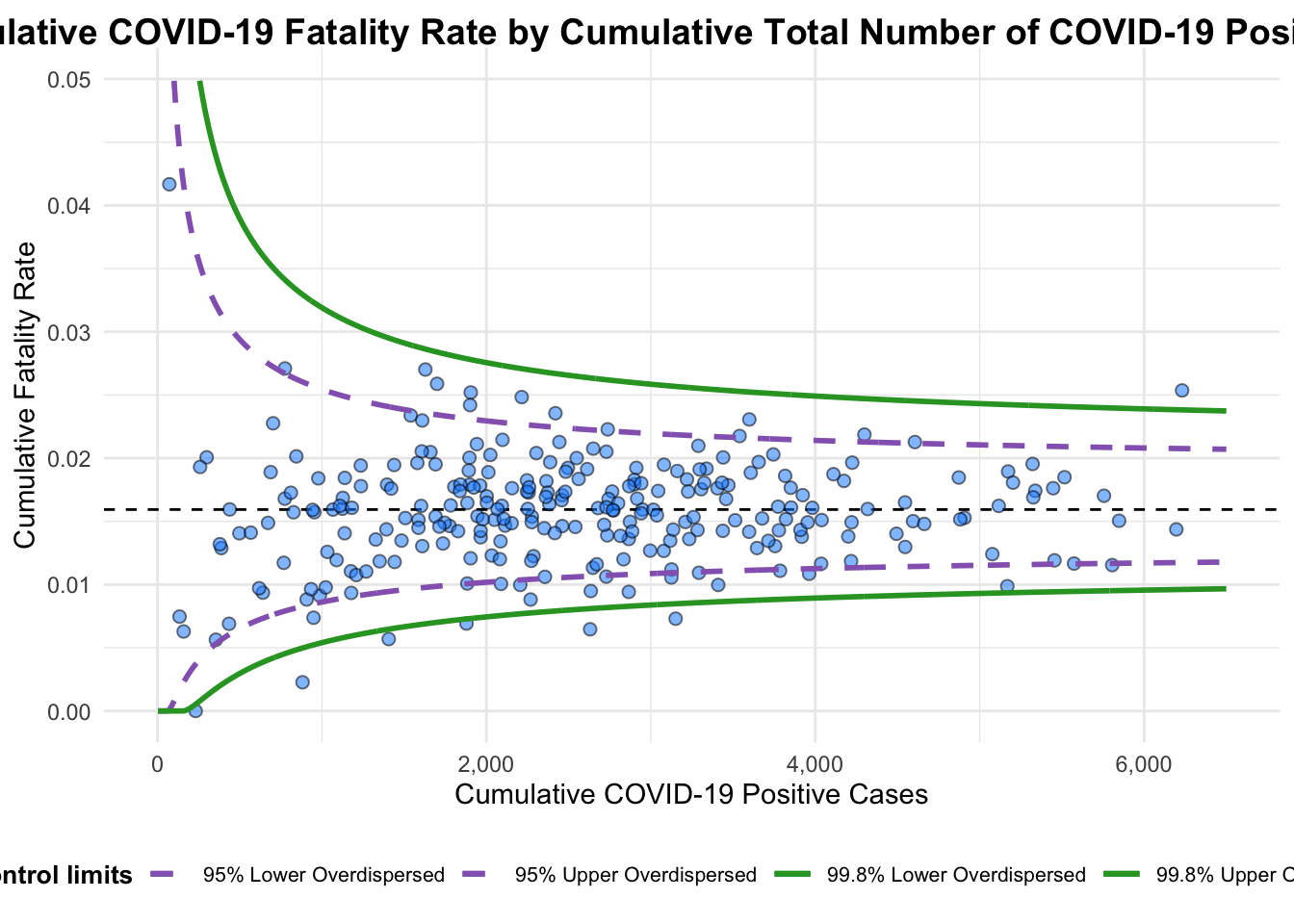

Remove Label and Update Title

The code chunk below plots a funnel plot.

• label = NA argument is to removed the default label outliers feature.

• title argument is used to add plot title.

• x_label and y_label arguments are used to add/edit x-axis and y-axis titles.

Code

funnel_plot(
  numerator = covid19$Death,
  denominator = covid19$Positive,
  group = covid19$`Sub-district`,
  data_type = "PR",
  xrange = c(0, 6500),
  yrange = c(0, 0.05),
  label = NA,
  title = "Cumulative COVID-19 Fatality Rate by Cumulative Total Number of COVID-19 Positive Cases", #<<
  x_label = "Cumulative COVID-19 Positive Cases", #<<
  y_label = "Cumulative Fatality Rate"  #<<
)

A funnel plot object with 267 points of which 7 are outliers.
Plot is adjusted for overdispersion.

ggplot2 methods

In this section, you will gain hands-on experience on building funnel plots step-by-step by using ggplot2. It aims to enhance you working experience of ggplot2 to customise speciallised data visualisation like funnel plot.

Computing the basic derived fields

To plot the funnel plot from scratch, we need to derive cumulative death rate and standard error of cumulative death rate.

Code

df <- covid19 %>%
  mutate(rate = Death / Positive) %>%
  mutate(rate.se = sqrt((rate*(1-rate)) / (Positive))) %>%
  filter(rate > 0)

Next, the fit.mean is computed by using the code chunk below.

Code

fit.mean <- weighted.mean(df$rate, 1/df$rate.se^2)

Calculate lower and upper limits for 95% and 99.9% CI

The code chunk below is used to compute the lower and upper limits for 95% confidence interval.

Code

number.seq <- seq(1, max(df$Positive), 1)
number.ll95 <- fit.mean - 1.96 * sqrt((fit.mean*(1-fit.mean)) / (number.seq))
number.ul95 <- fit.mean + 1.96 * sqrt((fit.mean*(1-fit.mean)) / (number.seq))
number.ll999 <- fit.mean - 3.29 * sqrt((fit.mean*(1-fit.mean)) / (number.seq))
number.ul999 <- fit.mean + 3.29 * sqrt((fit.mean*(1-fit.mean)) / (number.seq))
dfCI <- data.frame(number.ll95, number.ul95, number.ll999,
                   number.ul999, number.seq, fit.mean)

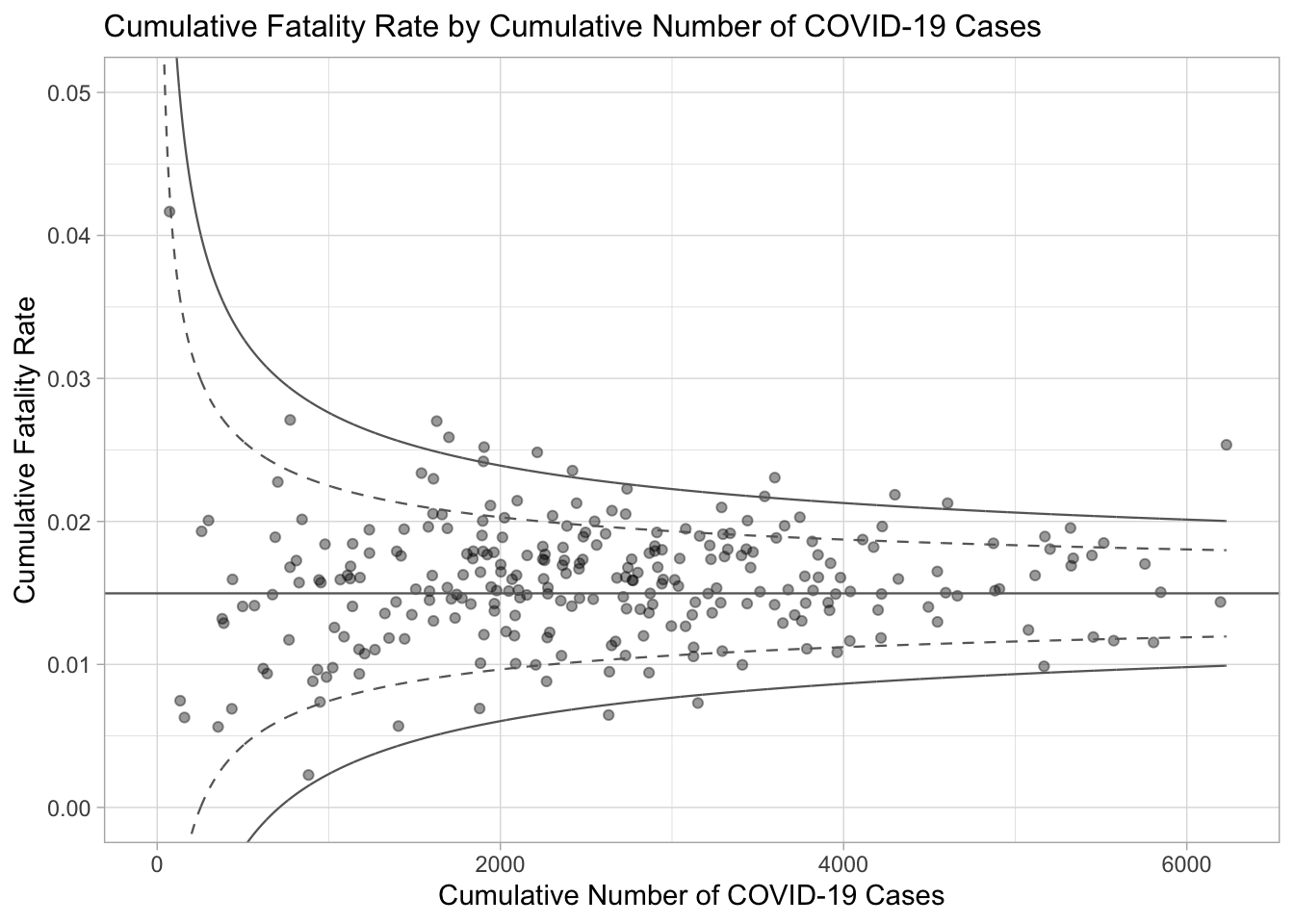

Plotting a static funnel plot

In the code chunk below, ggplot2 functions are used to plot a static funnel plot.

Code

p <- ggplot(df, aes(x = Positive, y = rate)) +
  geom_point(aes(label=`Sub-district`),
             alpha=0.4) +
  geom_line(data = dfCI,
            aes(x = number.seq,
                y = number.ll95),
            size = 0.4,
            colour = "grey40",
            linetype = "dashed") +
  geom_line(data = dfCI,
            aes(x = number.seq,
                y = number.ul95),
            size = 0.4,
            colour = "grey40",
            linetype = "dashed") +
  geom_line(data = dfCI,
            aes(x = number.seq,
                y = number.ll999),
            size = 0.4,
            colour = "grey40") +
  geom_line(data = dfCI,
            aes(x = number.seq,
                y = number.ul999),
            size = 0.4,
            colour = "grey40") +
  geom_hline(data = dfCI,
             aes(yintercept = fit.mean),
             size = 0.4,
             colour = "grey40") +
  coord_cartesian(ylim=c(0,0.05)) +
  annotate("text", x = 1, y = -0.13, label = "95%", size = 3, colour = "grey40") +
  annotate("text", x = 4.5, y = -0.18, label = "99%", size = 3, colour = "grey40") +
  ggtitle("Cumulative Fatality Rate by Cumulative Number of COVID-19 Cases") +
  xlab("Cumulative Number of COVID-19 Cases") +
  ylab("Cumulative Fatality Rate") +
  theme_light() +
  theme(plot.title = element_text(size=12),
        legend.position = c(0.91,0.85),
        legend.title = element_text(size=7),
        legend.text = element_text(size=7),
        legend.background = element_rect(colour = "grey60", linetype = "dotted"),
        legend.key.height = unit(0.3, "cm"))
p

Interactive Funnel Plot: plotly + ggplot2

The funnel plot created using ggplot2 functions can be made interactive with ggplotly() of plotly r package.

Code

fp_ggplotly <- ggplotly(p,
  tooltip = c("label",
              "x",
              "y"))
fp_ggplotly

Reference

• funnelPlotR package.

• Funnel Plots for Indirectly-standardised ratios.

• Changing funnel plot options

• ggplot2 package.
